Victaulic L060007PE0 Grooved Rigid Coupling 6 in

Product Description

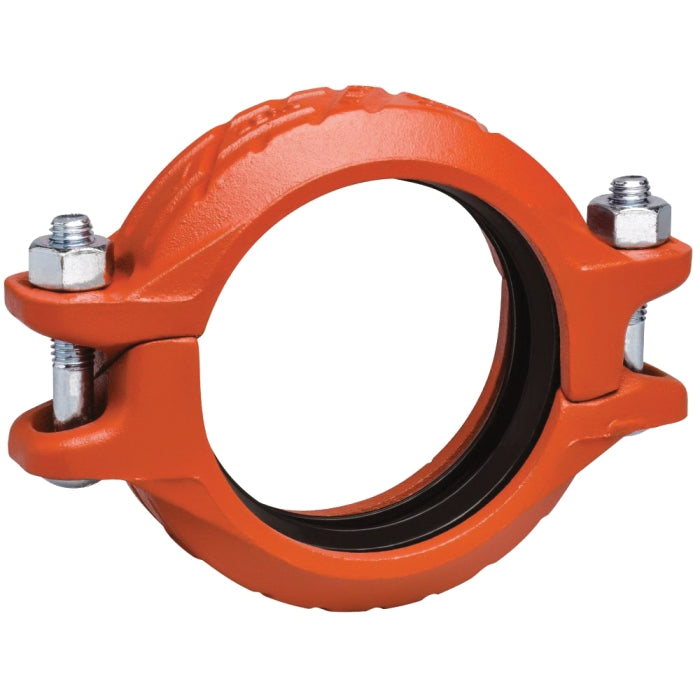

The Victaulic L060007PE0 is a grooved rigid coupling designed for joining OGS roll grooved and cut grooved pipe. This coupling accommodates a connection size of six inches and is made from ductile iron with an orange enamel finish.

• Supports pressures up to seven hundred psi and full vacuum.
• Compatible with ASME B31.1 and B31.9 standards.
• Includes grade E EPDM gasket.

Product Highlights

This coupling features an angled bolt pad that provides enhanced rigidity and accommodates various pipe joining needs.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI07E.6

Technical Specifications

• Item Name: Grooved Rigid Coupling with Grade E EPDM Gasket
• Connection Size: 6 in
• Outside Diameter: 6-5/8 in
• Length: 10.83 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Pressure Rating: 700 psi
• Maximum End Load: 24130 lb
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
• Applications: For use with OGS roll grooved and cut grooved pipe, valves, fittings, and accessories
