Victaulic L060004PE0 Grooved Flexible Coupling with Grade E EPDM Gasket 6 in Replacement MPN

Product Description

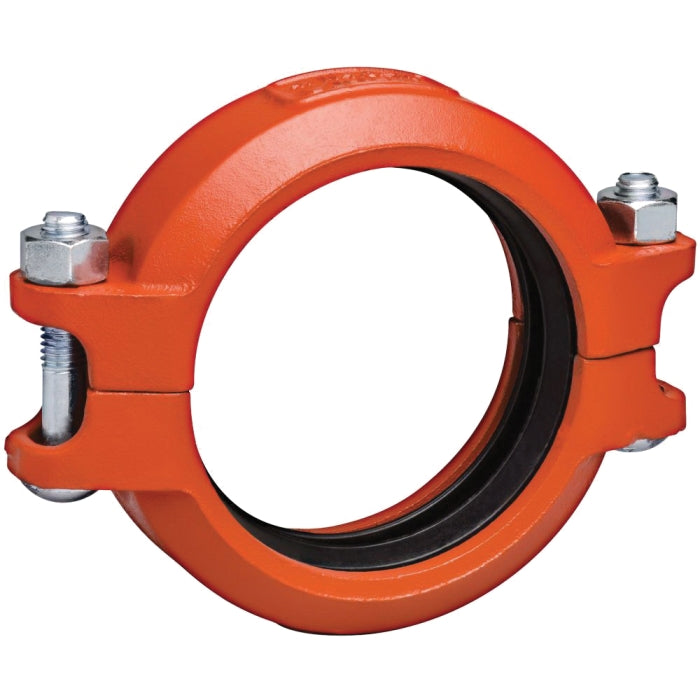

The Victaulic L060004PE0 is a grooved flexible coupling made from ductile iron. It features a Grade E EPDM gasket and is suitable for various fire protection applications. The coupling measures six inches in connection size, accommodating pressures from full vacuum up to 500 psi.

• Lightweight design for easy handling
• Flexible joint allows for expansion and deflection
• Meets industry standards for safety and performance

Product Highlights

This coupling is ideal for joining standard roll grooved and cut grooved pipe with other fittings, valves, and accessories.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 6 in
• Finish: Orange Enamel
• Item Name: Grooved Flexible Coupling with Grade E EPDM Gasket
• Length: 11.07 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Maximum End Load: 15525 lb
• Model: 75/004
• Outside Diameter: 6-5/8 in
• Pressure Rating: 450 psi
• Temperature Rating: -30 to 230 deg F
