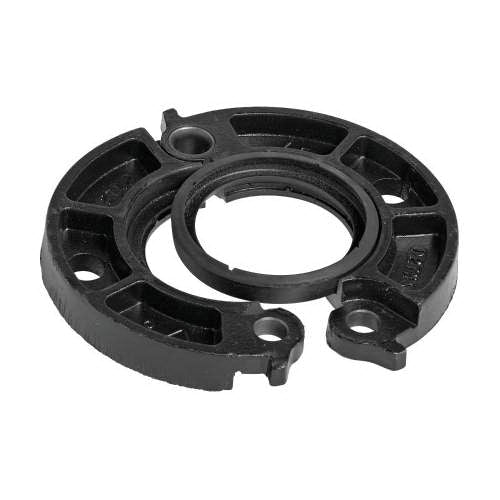

Victaulic L050741PE0 Flange Adapter 5 Inch Grooved

Product Description

The Victaulic L050741PE0 is a robust flange adapter designed to efficiently transition from flanged to grooved piping systems. This adapter is crafted from durable ductile iron and features a black enamel finish. Accompanied by a grade 'E' EPDM gasket, this model ensures a secure and leak-proof connection.

• Ensures strong adherence to quality standards with UL, ULC, FM, VDS, and LPCB certifications.
• Compatible with a range of flange standards including ANSI, Australian, PN, and JIS.
• Designed for pressure up to 300 psi, suitable for various industrial applications.

Product Highlights

Victaulic's L050741PE0 model stands out with its engineered design that promises reliability and long-lasting performance in demanding environments.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L050741PE0

Technical Specifications

• Material: Ductile Iron
• Finish: Black Enamel
• Connection Type: Grooved
• Outside Diameter: 11 inches
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 degrees Fahrenheit
• Number of Bolts: 8
• Bolt Size: 3/4 x 3-1/2 inches
