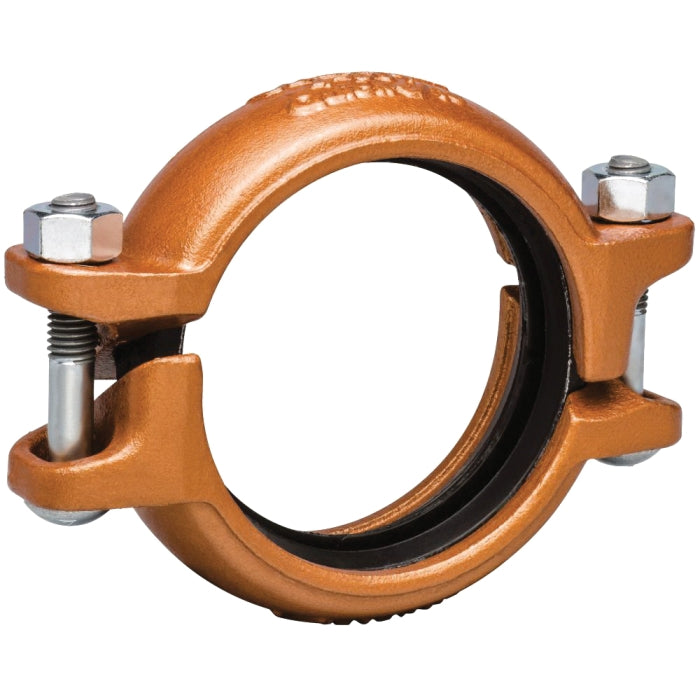

Victaulic L050607PE0 QuickVic 607 Copper Colored Alkyd Enamel Ductile Iron Grooved Rigid Coupling with Grade EHP Gasket 5 in

Product Description

The Victaulic L050607PE0 is a QuickVic 607 copper colored alkyd enamel ductile iron grooved rigid coupling designed to join rolled grooved, hard-drawn copper tubing. This coupling is easy to install and offers reliable sealing without the need to disassemble bolts or nuts. Suitable for 5 inch copper tubes, it provides strong rigidity and can accommodate various pressure ranges.

• Installation ready design
• Supports pressures from full vacuum to 300 psi
• Compatible with K, L, M or DWV copper tubing

Product Highlights

This product is ideal for trade professionals seeking a strong pipe joint that can handle demanding conditions. It meets the requirements of NFPA 13 sprinkler systems and ASME B31.9 standards.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic
• Minimum Order Quantity: 1

Technical Specifications

• Model: 607
• Connection Size: 5 in
• Length: 9.63 in
• Material: Ductile Iron
• Finish: Copper Colored Alkyd Enamel
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 250 deg F
• Outside Diameter: 5-1/8 in
• Standards/Certifications: UL, ULC and cUPC listed, NFPA 13, ASME B31.9
