Product Description

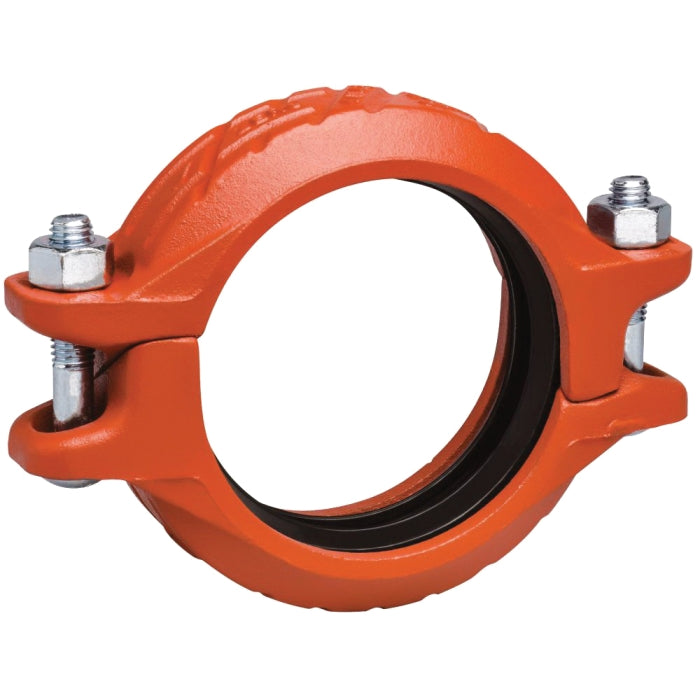

The Victaulic L050007PE0 is a zero-flex rigid coupling designed for joining grooved pipes with a precision fit. This durable coupling features a grade E EPDM gasket, sealing connections effectively under high pressure. Suitable for various applications, this coupling meets industry standards for piping and is essential for HVAC and plumbing installations.
- Accommodates pressures from vacuum up to 750 psi.
- Constructed from ductile iron with an orange enamel finish.
- Supports ASME and NFPA standards for safety and reliability.
Product Highlights
This coupling is ideal for use with OGS roll grooved and cut grooved pipes, ensuring strong connections in demanding environments.
Product Information
Standard Information
-
Brand: Victaulic
-
Model: 07
Technical Specifications
-
Connection Size: 5 in
-
Material: Ductile Iron
-
Maximum End Load: 18225 lb
-
Pressure Rating: 750 psi
-
Length: 9.89 in
-
Outside Diameter: 5.563 in
-
Temperature Rating: -30 to 230 deg F
-
Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
-
Applications: For use with OGS roll grooved pipe and cut grooved pipe, valves, fittings, and accessories
