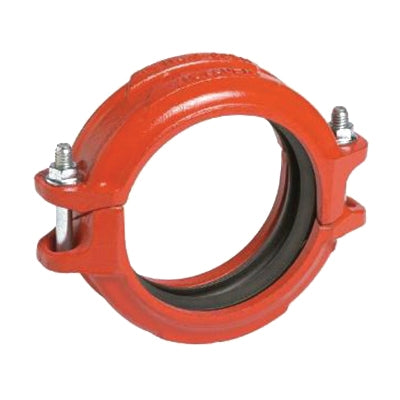

Victaulic L050005PE0 FireLock 005 Orange Enamel Ductile Iron Grooved Rigid Coupling 5 in

Product Description

The Victaulic L050005PE0 is a FireLock 005 rigid coupling made from durable ductile iron. This coupling features a patented angle-pad design that enables offsetting the housings while securely clamping the grooves. This design ensures rigidity for valve connections, fire mains, and long straight runs.

• Angle-pad design allows for easy assembly and installation
• Compatible with NFPA 13 support and hanging requirements
• Utilizes heat-treated plated carbon steel bolts for durability

Product Highlights

This coupling employs a Grade E EPDM Vic-Plus gasket system, optimally designed for fire protection applications. It simplifies assembly by allowing the removal of just one nut or bolt while swinging the housing over the gasket. This reduces the number of components needed for installation.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 5 inches
• Gasket Type: Grade E EPDM (violet color code)
• Bolt Size: 1/2 x 2-3/4 inches
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Applications: For use with fire protection services only
