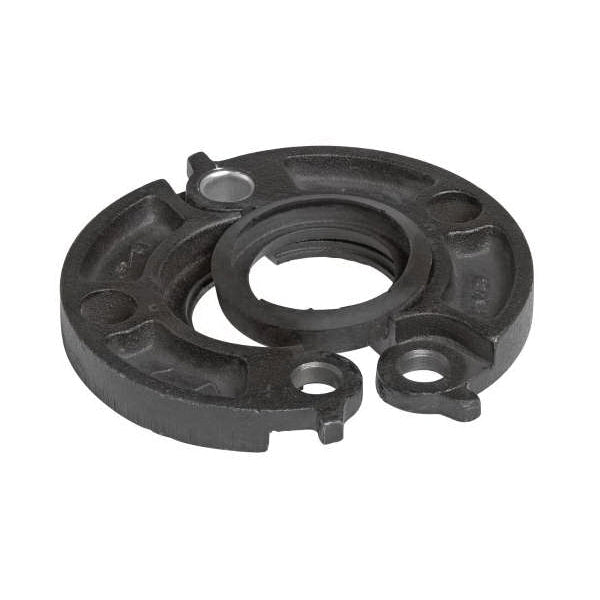

Victaulic L040744PE0 Flange Adapter with Grade E EPDM Type-A Vic-Plus Gasket 4 in

Product Description

The Victaulic L040744PE0 is a flange adapter designed for fire protection systems. This product integrates flanged components with ANSI Class 125 or Class 150 bolt hole patterns into grooved pipe systems. It is suitable for sizes from two to eight inches and comes with a Grade E EPDM Type-A Vic-Plus gasket.

• Flange adapter with easy handling through integrated end tabs.
• UL and ULC listed, FM approved for fire safety compliance.
• Designed to reduce assembly time and eliminate the need for lubrication.

Product Highlights

This flange adapter is an essential component for connecting grooved pipes to flanged fittings or valves. It offers simple assembly without the requirement of lubrication due to its unique gasket design.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: FireLock

Technical Specifications

• Model: 744
• Material: Ductile Iron
• Finish: Black Enamel
• Connection Type: Grooved
• Connection Size: 4 in
• Pressure Rating: 175 psi
• Maximum End Load: 2780 lb
• Number of Bolts: 8
• Outside Diameter: 9.94 in
• Bolt Circle Diameter: 7-3/4 in
• Thickness: 0.94 in
