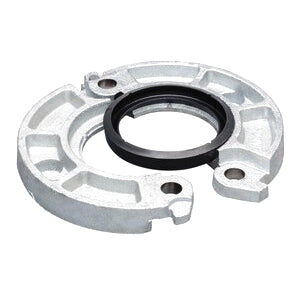

Victaulic L040744GE0 FireLock 744 Flange Adapter 4 in

Product Description

The VICTAULIC L040744GE0 FireLock 744 flange adapter is designed for directly incorporating flanged components with ANSI Class 125 or Class 150 bolt hole patterns into a grooved pipe system. It is designed for use with fire protection systems. The design incorporates small teeth inside the key shoulder ID to prevent rotation. The VicPlus system reduces assembly time and eliminates the mess of lubrication.

• Designed for incorporating flanged components into a grooved pipe system.
• Hinged design for easy handling with integral end tabs for assembly.
• The VicPlus system is dry, clean, and non-toxic.

Product Highlights

The VICTAULIC FireLock 744 flange adapter is UL and ULC listed and FM approved. It is designed for fire protection systems.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: L040744GE0

Technical Specifications

• Bolt Circle Diameter: 7-3/4 in
• Bolt Size: 5/8 x 3 in
• Connection Size: 4 in
• Connection Type: Grooved
• Finish: Hot Dipped Galvanized
• Item Name: Flange Adapter with Grade "E" EPDM Type-A Vic-Plus Gasket
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Maximum End Load: 2780 lb
• Model: 744
• Number of Bolts: 8
• Outside Diameter: 9.94 in
• Pressure Rating: 175 psi
• Sub Brand: FireLock
• Thickness: 0.94 in
• End Style: Flanged
• Pressure Class: 125/150 lb
• Series: 744
• Standards and Approvals: ASTM A536 Grade 65-45-12, FM Approved, UL Listed
