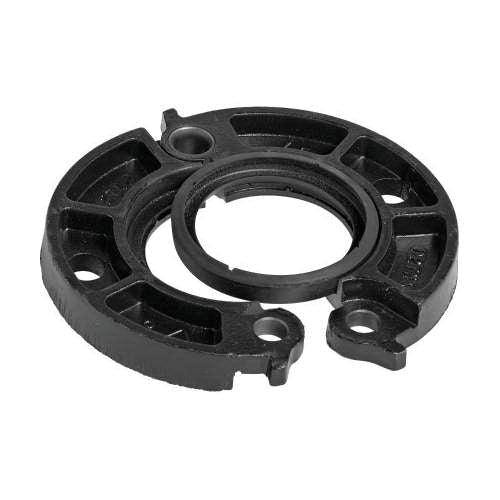

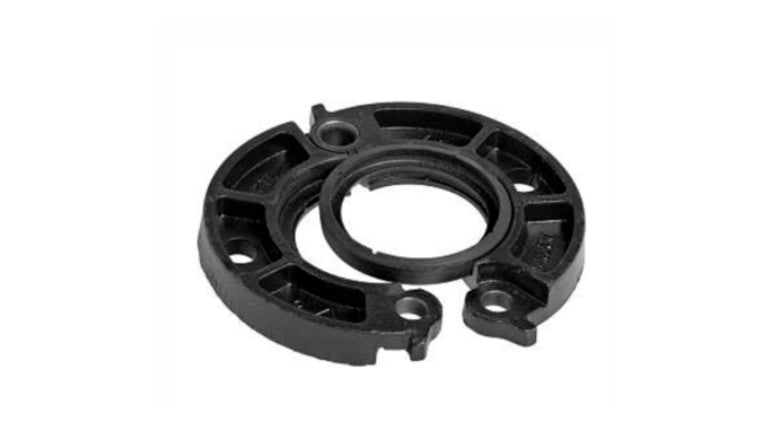

Victaulic L040741GE0 Vic-Flange 741 4 in Grooved Galvanized Flange Adapter E Gasket

Product Description

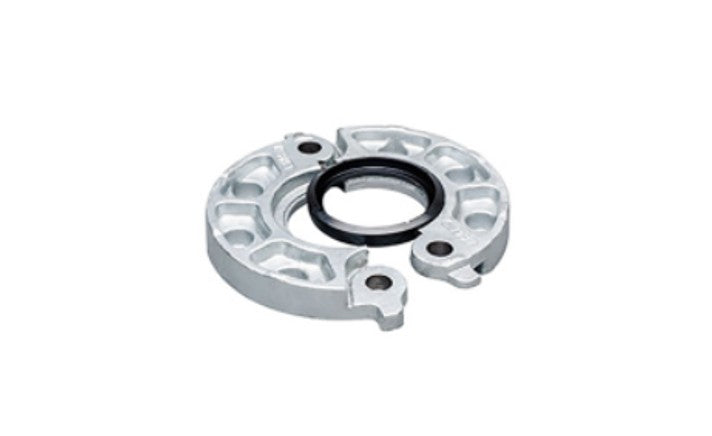

The Victaulic L040741GE0 is a flange adapter designed to assist in transitioning from flanged to grooved piping systems. This product is made by Victaulic, a recognized leader in mechanical fittings. The flange adapter features a durable construction of hot dipped galvanized ductile iron and comes with a Grade E EPDM gasket.

• Designed for ANSI class 125 and 150 standards.
• Compatible with Australian standard table E, PN10/16, and JIS 10K.
• UL and ULC listed with FM, VDS, and LPCB approvals.

Product Highlights

This adapter ensures reliable connections between different piping systems, facilitating efficient fluid transfer.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI741G.4

Technical Specifications

• Model: 741
• Connection Size: 4 in
• Outside Diameter: 10 in
• Bolt Size: 5/8 x 3 in
• Temperature Rating: -30 to 230 deg F
• Pressure Rating: 300 psi
• Maximum End Load: 4770 lb
• Material: Ductile Iron
• Thickness: 1 in
• Finish: Hot Dipped Galvanized
• Gasket Type: Grade E EPDM
