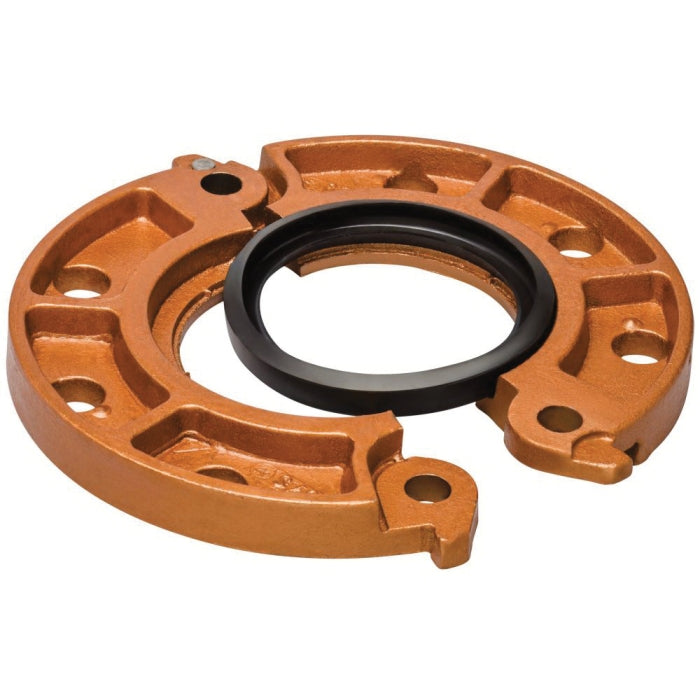

Victaulic L040641PE0 Vic-Flange 641 Copper Colored Alkyd Enamel Ductile Iron Flange Adapter with Grade E EPDM Gasket 4 in

Product Description

The Victaulic L040641PE0 is a flange adapter designed for large diameter copper tubing. This product is part of the Vic-Flange family and features a durable gasket made from grade E EPDM. The flange adapter fits copper tubing sizes from two inches to six inches. It is suitable for applications requiring pressure ratings up to 300 psi, making it ideal for plumbing and HVAC installations.

• Designed for copper tubing sizes two to six inches
• Utilizes a pressure responsive synthetic rubber gasket
• Pressure ratings of up to 300 psi

Product Highlights

This flange adapter requires no heat for installation, supporting a lead-free application method. It is built for easy connection with grooved piping, providing flexibility and reliability in various plumbing tasks.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 4 inches
• Connection Type: Grooved
• Pressure Rating: 300 psi
• Outside Diameter: 9.94 inches
• Bolt Circle Diameter: 7.5 inches
• Number of Bolts: 8
• Thickness: 0.94 inches
• Material: Ductile Iron
