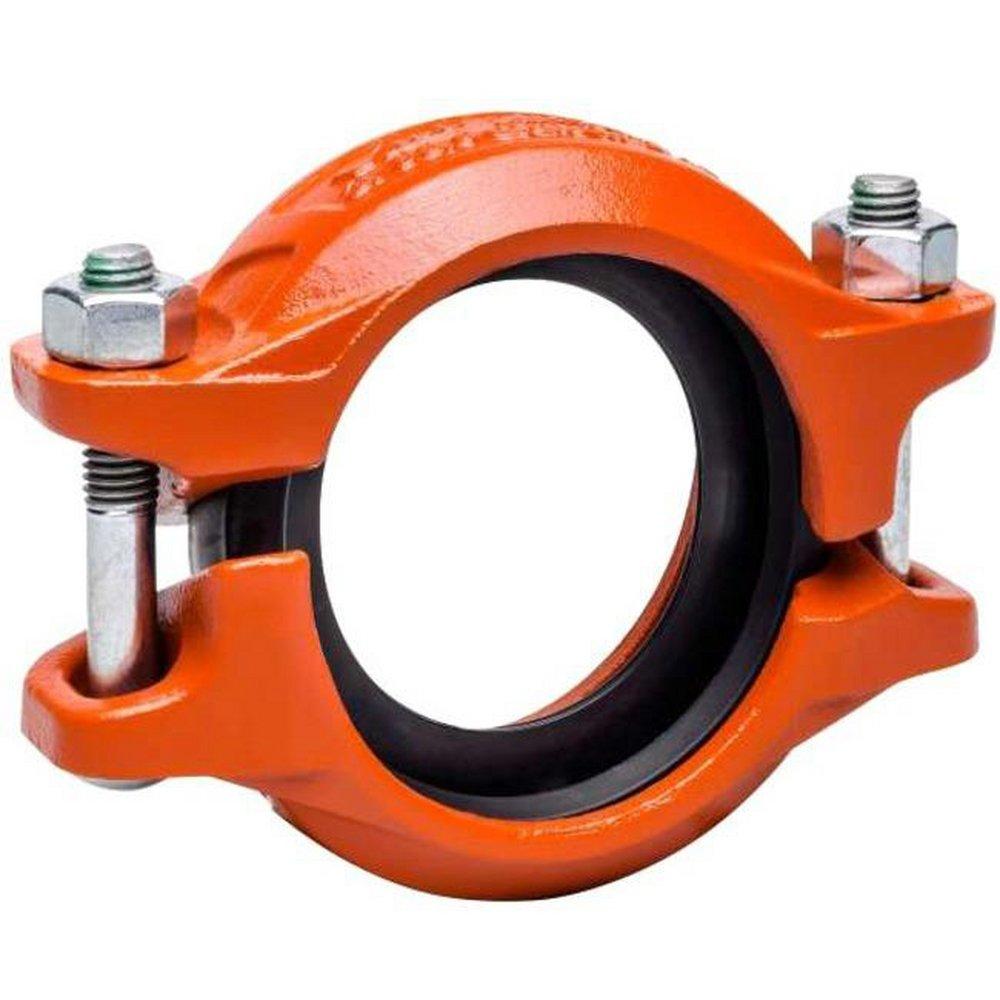

Victaulic L040107GEN QuickVic Style 107N 4 in. Hot Dipped Galvanized Grooved Coupling

Product Description

The Victaulic L040107GEN is a QuickVic Style 107N coupling designed for seamless connection in piping systems. This product is made from hot dipped galvanized ductile iron, providing strength and corrosion resistance. Ideal for joining carbon steel and stainless steel pipes, it accommodates pressures up to 750 psi.

• Working pressure of 750 psi
• Length of eight and three-fourths inches
• Connection size of four inches

Product Highlights

This coupling features an angled bolt pad for added rigidity and is equipped with a grade EHP EPDM gasket.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: L040107GEN

Technical Specifications

• Model: 107N
• Connection Size: 4 in
• Material: Ductile Iron
• Finish: Hot Dipped Galvanized
• Length: 8-3/4 in
• Pressure Rating: 750 psi
• Outside Diameter: 4-1/2 in
• Temperature Rating: -30 to 250 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved, ASME B31.1, B31.9
