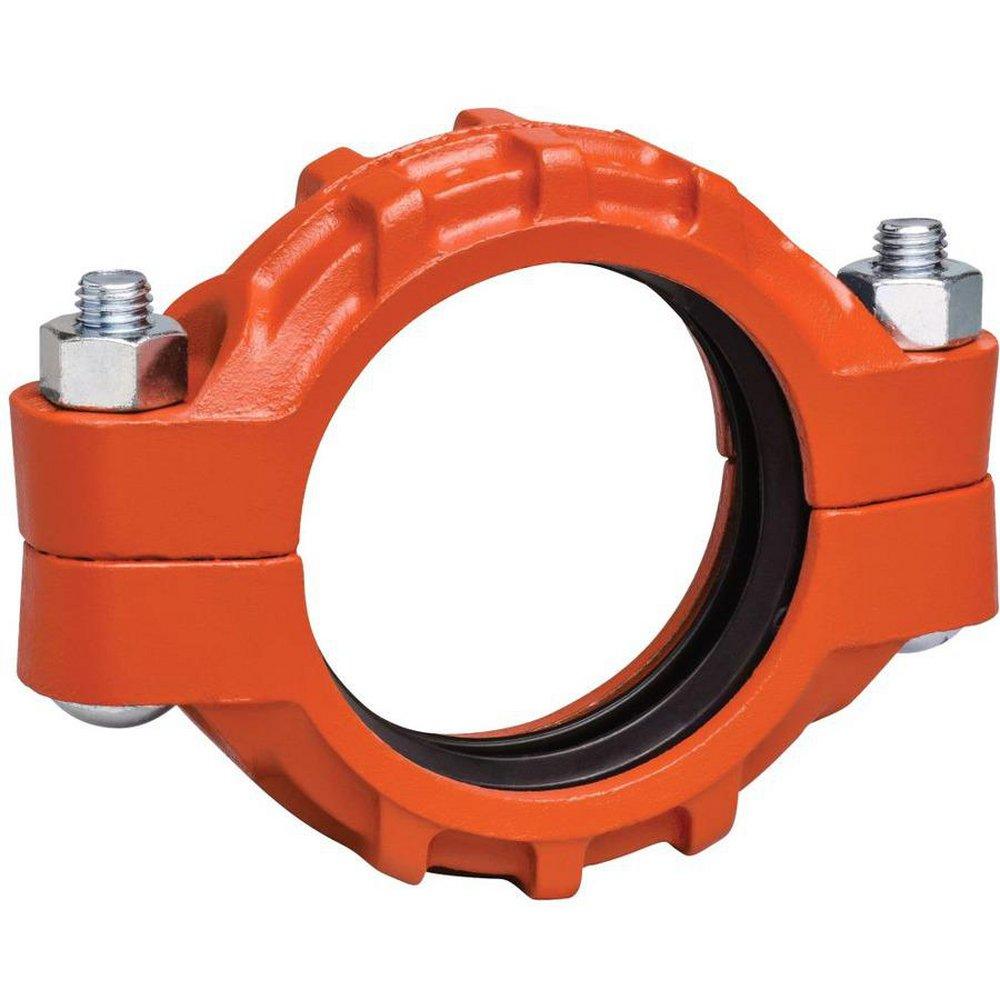

Victaulic L040077PE0 Zero-Flex Style 77 4 In. Orange Enamel Grooved Coupling

Product Description

The Victaulic L040077PE0 is a zero-flex style grooved coupling designed for pipe fittings. This coupling supports a four-inch connection size and features an orange enamel finish. It is suitable for applications requiring flexibility in pipe connections, allowing for expansion and contraction.

• Compatible with various pipe sizes from three-fourths to twenty-four inches.
• Pressure rating of 1000 psi and maximum end load of 15900 lb.
• Constructed from ductile iron with a grade E EPDM gasket for reliable sealing.

Product Highlights

This coupling provides effective stress relief and vibration dampening, making it ideal for use in plumbing and HVAC installations.

Product Information

Standard Information

• Brand: Victaulic
• Model: 77

Technical Specifications

• Connection Size: 4 in
• Finish: Orange Enamel
• Material: Ductile Iron
• Maximum End Load: 15900 lb
• Pressure Rating: 1000 psi
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Applications: For use with Victaulic products with OGS groove profile
