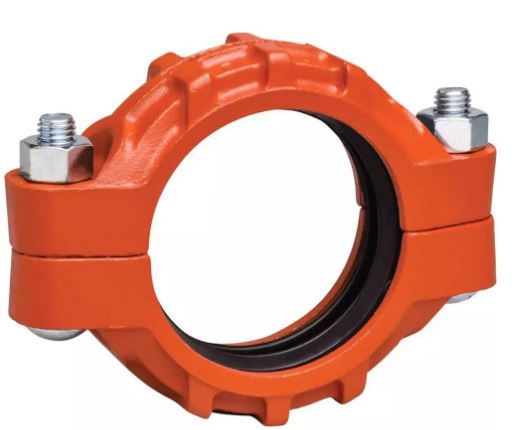

Victaulic L040077GE0 Grooved Flexible Coupling 77 Standard 4 in

Product Description

The Victaulic L040077GE0 is a standard grooved flexible coupling designed for pipe applications. This coupling connects standard roll grooved and cut grooved pipes with a size of four inches. It accommodates system pressures from full vacuum to one thousand psi.

• Cross ribbed, two-piece housing construction
• Grade E EPDM gasket for reliable sealing
• Accommodates pressures up to 1000 psi

Product Highlights

Designed for use with Victaulic products featuring OGS groove profiles, it allows for thermal expansion, contraction, and deflection.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L040077GE0

Technical Specifications

• Connection Size: 4 in
• Finish: Hot Dipped Galvanized
• Item Name: Grooved Flexible Coupling with Grade E EPDM Gasket
• Length: 8.88 in
• Material: Ductile Iron
• Maximum End Load: 15900 lb
• Model: 77
• Outside Diameter: 4-1/2 in
• Pressure Rating: 1000 psi
• Temperature Rating: -30 to 230 deg F
• Type: Standard
