Victaulic L040075PE0 75 Series Flexible Coupling 4 in Replacement MPN

Product Description

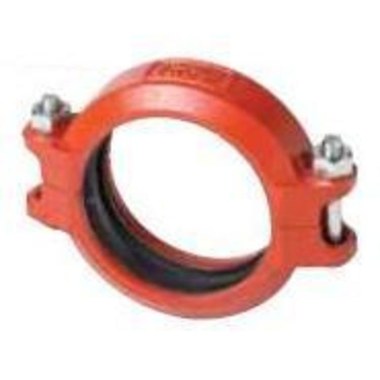

The Victaulic L040075PE0 is a grooved flexible coupling designed for use in standard roll grooved and cut grooved pipes. This coupling is made from ductile iron and features an orange enamel finish. It is suitable for moderate pressure applications up to 500 psi, making it an ideal choice for HVAC and plumbing systems.

• Accommodates pressures from full vacuum to 500 psi
• Flexible joint allows for expansion, contraction, and deflection
• 50% lighter than standard Victaulic couplings

Product Highlights

This coupling offers a lightweight design and a Grade E EPDM gasket for reliable sealing performance.

Product Information

Standard Information

• Brand: Victaulic
• UPC: 688304462085

Technical Specifications

• Connection Size: 4 in
• Finish: Orange Enamel
• Material: Ductile Iron
• Length: 8.03 in
• Pressure Rating: 500 psi
• Maximum End Load: 7950 lb
• Outside Diameter: 4-1/2 in
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
