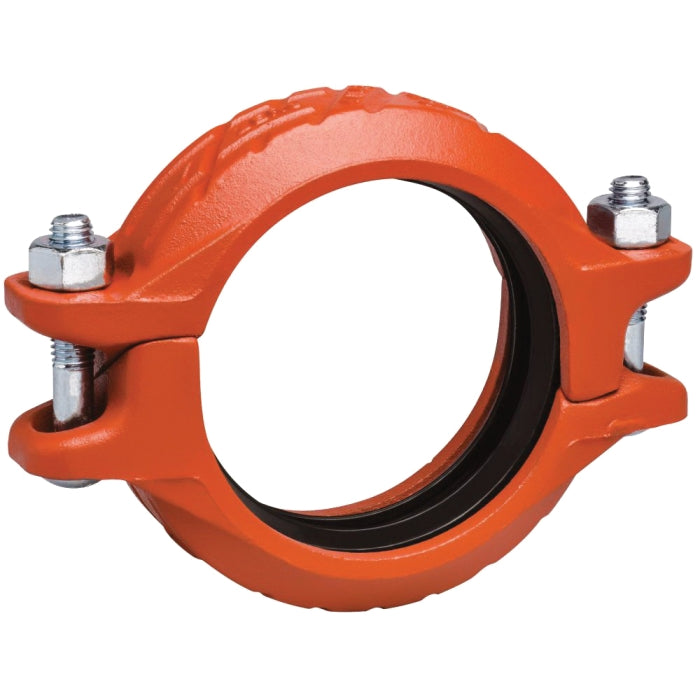

Victaulic L040007PE0 Zero-Flex 07 Orange Enamel Painted Ductile Iron Rigid Coupling with Grade E Gasket, 4 in

Product Description

The Victaulic L040007PE0 is a zero-flex orange enamel ductile iron grooved rigid coupling designed for efficient and durable pipe connections. This coupling is suitable for a connection size of four inches and features a grade E EPDM gasket, ensuring reliable performance.

• Accommodates pressures from vacuum up to seven hundred fifty psi
• Gasket made from grade E EPDM
• Carbon steel bolts and nuts meeting ASTM standards

Product Highlights

The Victaulic L040007PE0 is ideal for use with OGS roll grooved pipe and cut grooved pipes, valves, fittings, and suitable accessories. Its design meets essential industry standards for support and hanging requirements, making it reliable for various applications.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI07E.4

Technical Specifications

• Connection Size: 4 in
• Finish: Orange Enamel
• Material: Ductile Iron
• Length: 8.21 in
• Maximum End Load: 11925 lb
• Model: 07
• Outside Diameter: 4-1/2 in
• Pressure Rating: 750 psi
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
