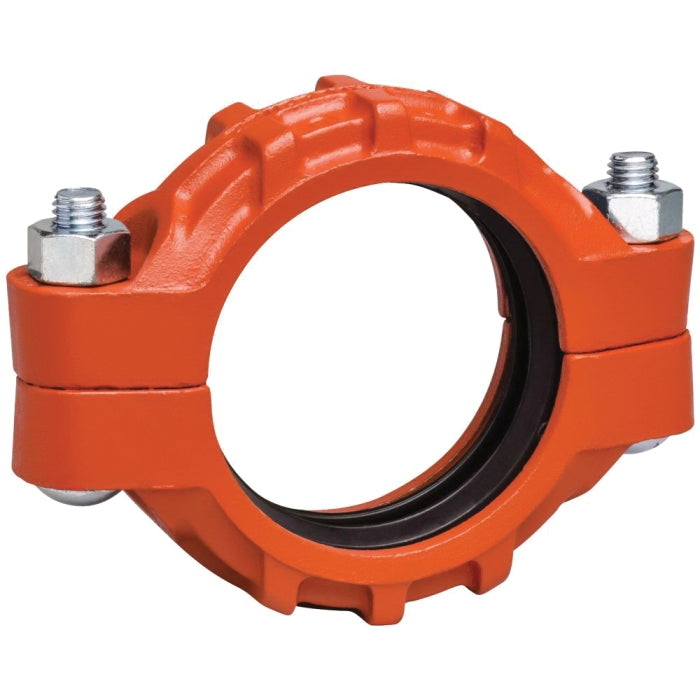

Victaulic L034077PE0 Flexible Coupling 3-1/2 in

Product Description

The Victaulic L034077PE0 is a flexible coupling designed for use with piping systems. This coupling is made of ductile iron and features a standard size of three and one-half inches. The product is built for high-pressure applications, accommodating pressures up to one thousand psi and temperature ranges from minus thirty to two hundred thirty degrees Fahrenheit.

• Cross ribbed, two-piece housing construction
• Accommodates pressures from full vacuum up to one thousand psi
• Flexible joint for expansion, contraction, and deflection

Product Highlights

Ideal for joining pipes with Victaulic OGS groove profiles, the coupling provides reliability and performance in various plumbing applications.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 3-1/2 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Length: 8-1/4 in
• Outside Diameter: 4 in
• Pressure Rating: 1000 psi
• Temperature Rating: -30 to 230 deg F
• Maximum End Load: 12565 lb
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
