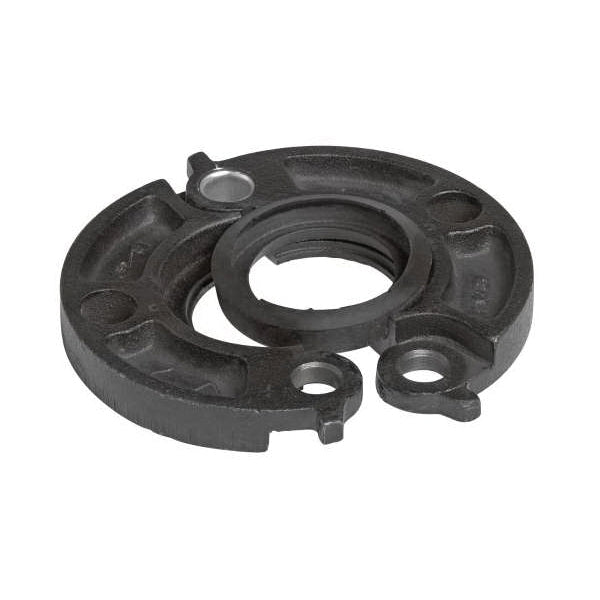

Victaulic L030744PE0 FireLock 744 Black Enamel Ductile Iron Flange Adapter with Grade E EPDM Type-A Vic-Plus Gasket 3 in

Product Description

The Victaulic L030744PE0 is a flange adapter designed for integrating flanged components into grooved pipe systems. It is suitable for ANSI Class 125 or Class 150 bolt hole patterns.

• Incorporates a Grade E EPDM Vic-Plus gasket for secure sealing.
• Sizes from 2 inches to 8 inches are easy to handle with hinge design and integral end tabs.
• Patented VicPlus system eliminates the need for lubrication, saving time and preventing mess.

Product Highlights

This flange adapter is UL and ULC listed and FM approved, making it suitable for fire protection systems.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 744
• Connection Size: 3 inches
• Connection Type: Grooved
• Material: Ductile Iron
• Finish: Black Enamel
• Number of Bolts: 4
• Bolt Size: 5/8 x 3 inches
• Pressure Rating: 175 psi
• Maximum End Load: 1685 lb
• Outside Diameter: 8.44 inches
• Bolt Circle Diameter: 6 inches
• Thickness: 0.94 inches
• Applicable Standards: UL and ULC listed, FM approved
• Applications: For use with fire protection systems
