Product Description

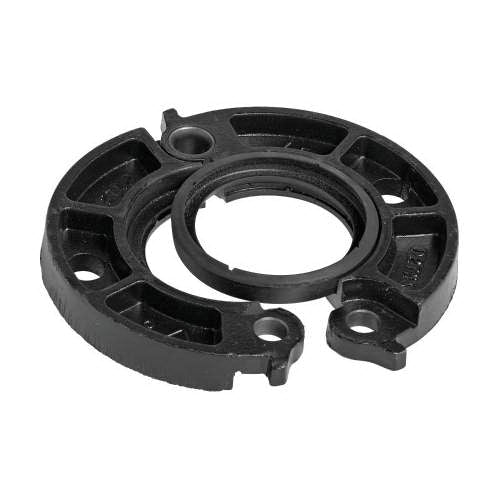

The Victaulic Vic-Flange adapter model L030741PE0 is a robust ductile iron flange adapter designed for effective transition from flanged to grooved piping systems. It features a Grade E EPDM gasket suitable for a wide range of applications.
- Compatible with ANSI class 125 and 150, Australian standard table E, PN10/16, and JIS 10K flanges.
- Equipped with an EPDM Grade E gasket identified by a green stripe, offering excellent resistance and durability.
- Approved by UL, ULC, FM, VDS, and LPCB, ensuring compliance with rigorous safety standards.
Product Highlights
This flange adapter facilitates precise pipelines alignment and simplifies the piping installation process by providing a grooved end connection that can be directly bolted to flanged components.
Product Information
Standard Information
-
Brand: Victaulic
-
MPN: L030741PE0
-
Material: Ductile Iron
Technical Specifications
-
Connection Size: 3 inches
-
Connection Type: Grooved
-
Pressure Rating: 300 psi
-
Temperature Rating: -30 to 230 degrees Fahrenheit
-
Bolt Circle Diameter: 6 inches
-
Bolt Size: 5/8 x 3 inches
-
Outside Diameter: 8-1/2 inches
-
Thickness: 1 inch
