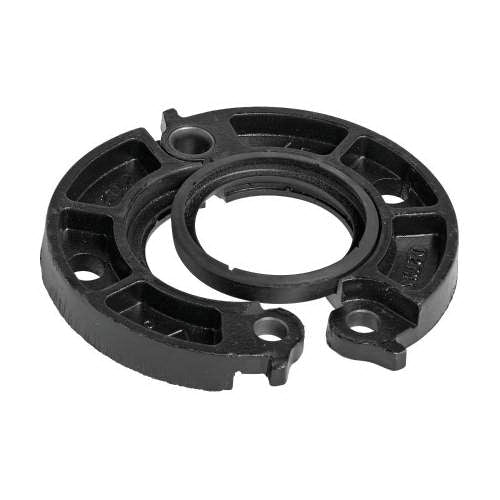

Victaulic L030741GE0 Vic-Flange 741 Hot Dipped Galvanized Ductile Iron Flange Adapter E Gasket

Product Description

The Victaulic L030741GE0 is a flange adapter designed from hot dipped galvanized ductile iron material. This product features a grade E EPDM gasket and is suitable for connection sizes of three inches. It serves to transition between flanged and grooved piping systems effectively.

• Constructed from hot dipped galvanized ductile iron
• Meets ANSI class 125 and 150 standards
• Compatible with grooved piping systems

Product Highlights

This flange adapter is reliable for various plumbing applications and integrates easily with existing piping.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 741
• Connection Size: 3 inches
• Material: Ductile iron
• Finish: Hot dipped galvanized
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 degrees Fahrenheit
• Maximum End Load: 2885 lb
• Number of Bolts: 4
• Bolt Size: 5/8 x 3 inches
• Outside Diameter: 8-1/2 inches
• Actual Outside Diameter: 3-1/2 inches
• Bolt Circle Diameter: 6 inches
• Thickness: 1 inch
• Gasket: Grade E EPDM (green stripe color code)
