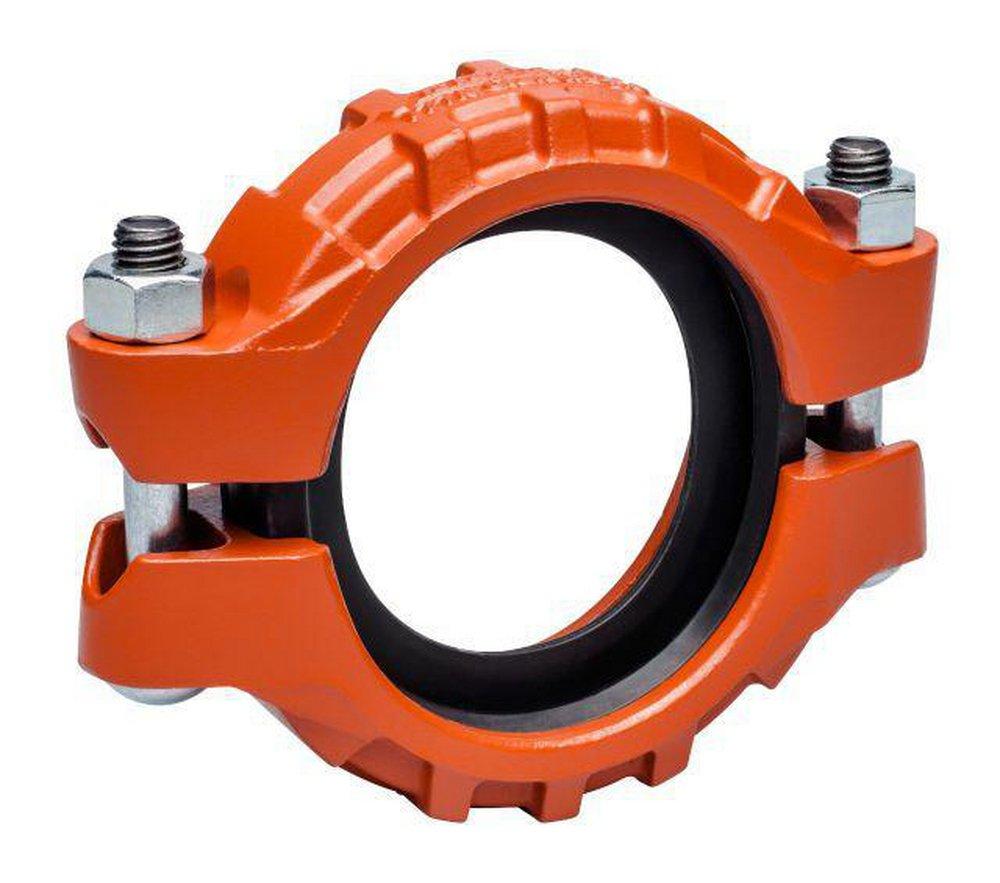

Victaulic L030177PEN QuickVic 3 in Painted Grooved Coupling

Product Description

This Victaulic QuickVic coupling is designed for non-potable water systems. The part number is L030177PEN. It allows for the joining of roll or cut grooved pipe, fittings, valves, and accessories. This coupling can handle pressures up to one thousand psi or six thousand eight hundred ninety-five kPa.

• Accommodates pressures from full vacuum to 1000 psi
• Features Installation Ready technology
• Designed for flexible pipe joints with limited movement

Product Highlights

Product Information

Standard Information

• Brand: Victaulic
• MPN: L030177PEN

Technical Specifications

• Connection Size: 3 in
• Finish: Orange Enamel
• Material: Ductile Iron
• Item Name: Grooved Flexible Coupling with Grade EHP EPDM Gasket
• Length: 7.38 in
• Pressure Rating: 1000 psi
• Outside Diameter: 3-1/2 in
• Temperature Rating: -30 to 250 deg F
• Model: 177N
• Standards/Certifications: cULus listed, FM approved
• Applications: For use to join roll or cut grooved pipe, grooved fittings, valves, and accessories
