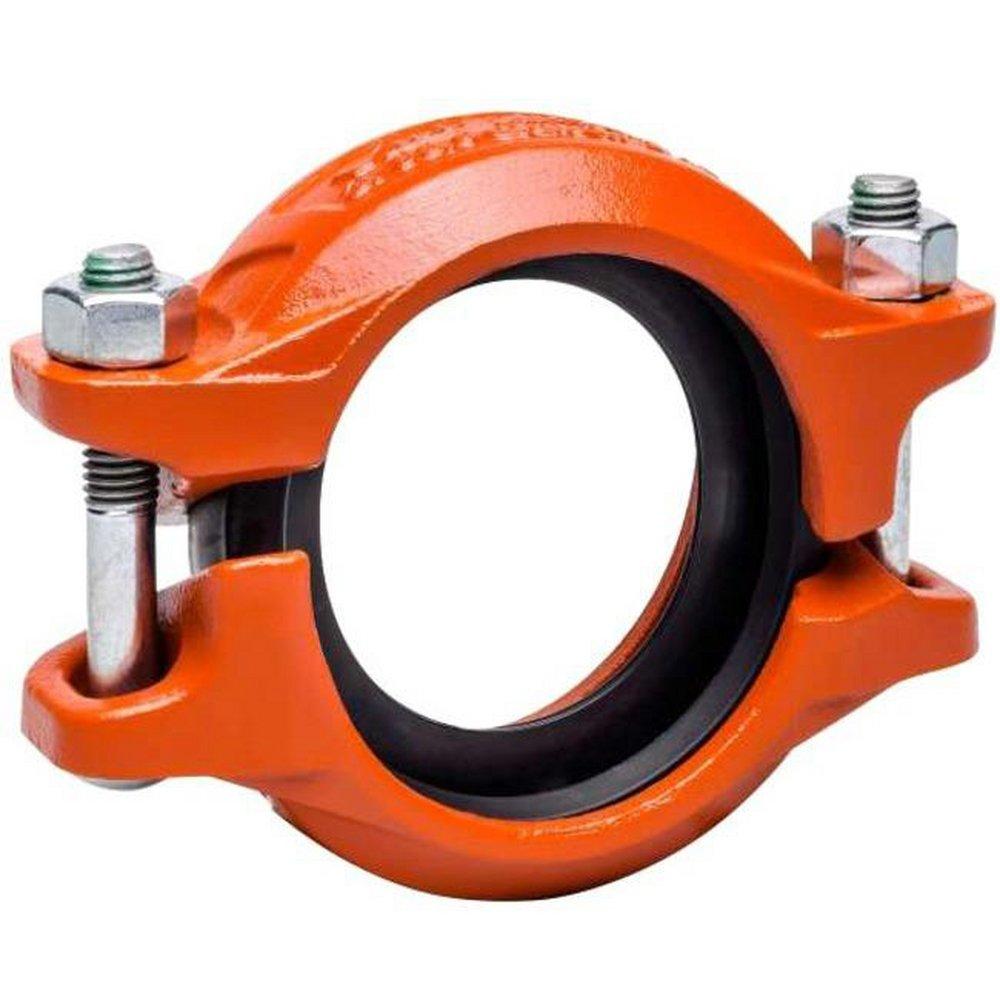

Victaulic L030107GEN QuickVic Style 107N 3 in Hot Dipped Galvanized Grooved Coupling

Product Description

The Victaulic L030107GEN is a QuickVic Style 107N coupling designed for ductile iron pipe systems. It offers superior strength and stability in applications requiring reliable connections. This product accommodates a connection size of three inches and is suitable for high-pressure environments.

• Designed for pressures up to 750 psi
• Made from hot dipped galvanized ductile iron
• Includes Grade EHP EPDM gasket for enhanced sealing

Product Highlights

This coupling is ideal for joining carbon steel and stainless steel pipes. It is engineered to restrict axial or angular movement while accommodating full vacuum to pressure scenarios.

Product Information

Standard Information

• Brand: Victaulic
• Model: 107N

Technical Specifications

• Connection Size: 3 in
• Finish: Hot Dipped Galvanized
• Length: 7.5 in
• Material: Ductile Iron
• Pressure Rating: 750 psi
• Temperature Rating: -30 to 250 degrees F
• Outside Diameter: 3.5 in
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved, ASME B31.1, B31.9
• Applications: For use with joining carbon steel and/or stainless steel pipe
