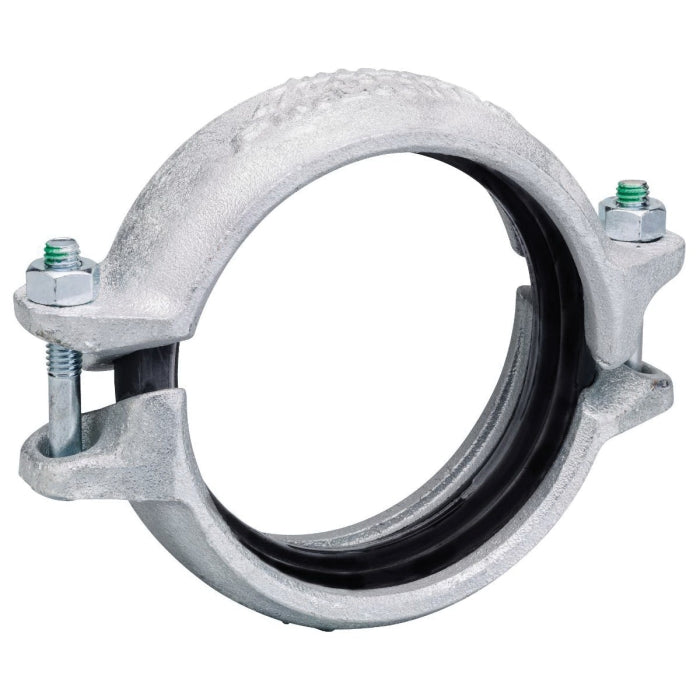

Victaulic L03009NGE0 FireLock Installation-Ready 009N Hot Dipped Galvanized Ductile Iron Grooved Rigid Coupling 3 in

Product Description

The Victaulic L03009NGE0 is a grooved rigid coupling made from hot dipped galvanized ductile iron, suitable for fire protection applications. This product is designed to join carbon steel pipe with grooved ends. Its Grade E EPDM Type-A Vic-Plus pre-lubricated gasket ensures a secure fit. The coupling is ideal for use in fire protection systems, providing a reliable joint that restricts axial and angular movement.

• Joins carbon steel pipe with grooved ends.
• Includes Grade E EPDM gasket for secure sealing.
• Compatible with various pipe sizes and standards.

Product Highlights

This coupling simplifies installation and enhances the overall integrity of piping systems used in fire protection.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: L03009NGE0
• Material: Ductile Iron
• Connection Size: 3 inches

Technical Specifications

• Gasket Type: Grade E EPDM (Type-A)
• Track Bolts: Carbon steel oval neck meeting ASTM A449
• Hex Nuts: Carbon steel meeting ASTM A563 grade B
• Electro-Plating: Zinc per ASTM B633 FE/ZN5
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Bolts Included: 2 pieces of 3/8 x 2-1/2 inches
