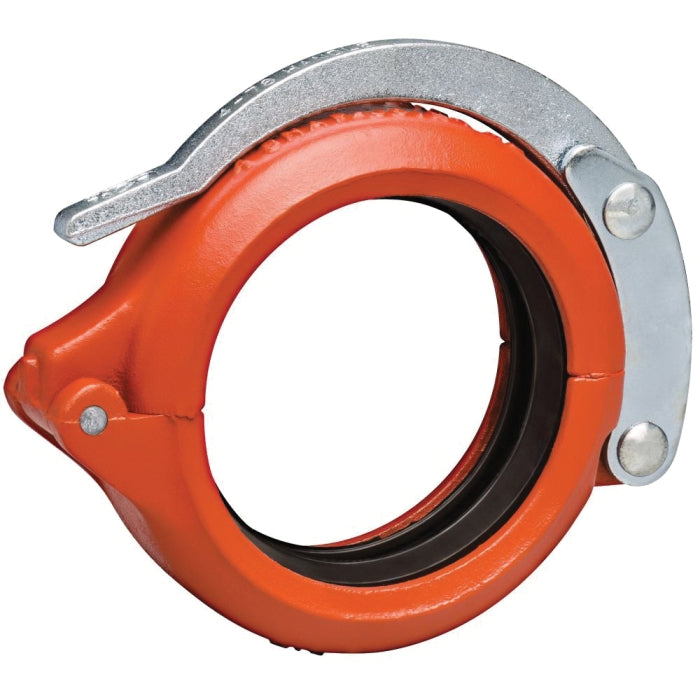

Victaulic L030078PEA Snap-Joint 78 Orange Enamel Ductile Iron Grooved Coupling with Grade E EPDM Gasket 3 in

Product Description

The Victaulic L030078PEA is a snap-joint coupling designed for quick disconnect service. This product features a ductile iron construction with an orange enamel finish, making it durable and reliable for various plumbing applications. With a three-inch connection size, this coupling is ideal for use in different installation setups.

• Quick disconnect design for easy assembly
• Includes grade E EPDM gasket for secure sealing
• Manufactured with a maximum pressure rating of 300 psi

Product Highlights

This coupling is suitable for quick disconnect applications, allowing for easy maintenance and service without the need for special tools.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI78.3

Technical Specifications

• Connection Size: 3 in
• Finish: Orange Enamel
• Item Name: Grooved Coupling with Grade E EPDM Gasket
• Length: 6.25 in
• Material: Ductile Iron
• Maximum End Load: 2885 lb
• Outside Diameter: 3.5 in
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 deg F
• Model: 78
• Sub Brand: Snap-Joint
