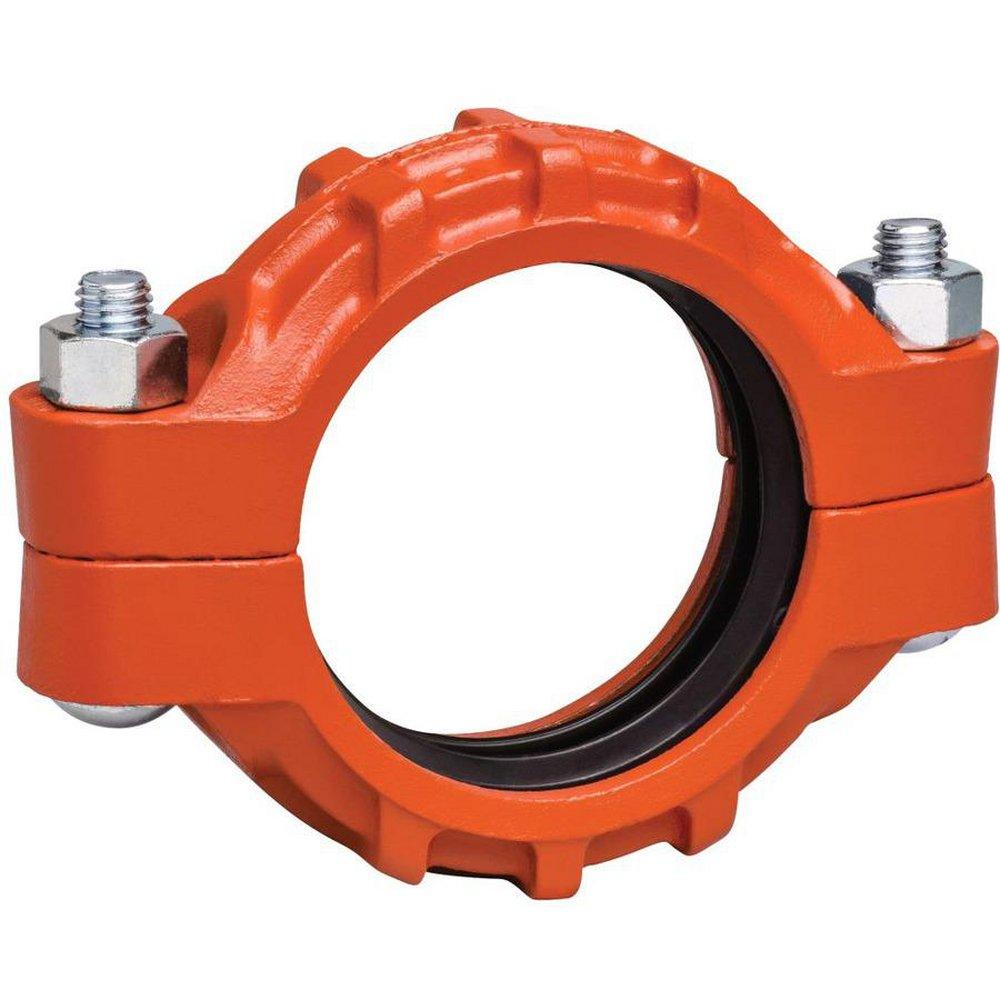

Victaulic L030077PE0 FireLock Style 77 3 in Orange Enamel and Painted Grooved Coupling

Product Description

The Victaulic L030077PE0 is a FireLock Style 77 grooved coupling designed for pipe connections. This coupling is made from ductile iron and features a durable orange enamel finish. It is intended for use in fire protection systems.

• Connection size of three inches
• Pressure rating up to 1000 psi
• Flexible design for expansion and contraction

Product Highlights

This coupling provides a flexible pipe joint. It accommodates system movement while maintaining a secure seal. Its robust materials ensure longevity and reliability in various applications.

Product Information

Standard Information

• Brand: Victaulic
• Model: 77

Technical Specifications

• Connection Size: 3 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Length: 7.13 in
• Maximum End Load: 9620 lb
• Pressure Rating: 1000 psi
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Applications: For use with pipe and Victaulic products that feature ends formed with the Victaulic OGS groove profile
