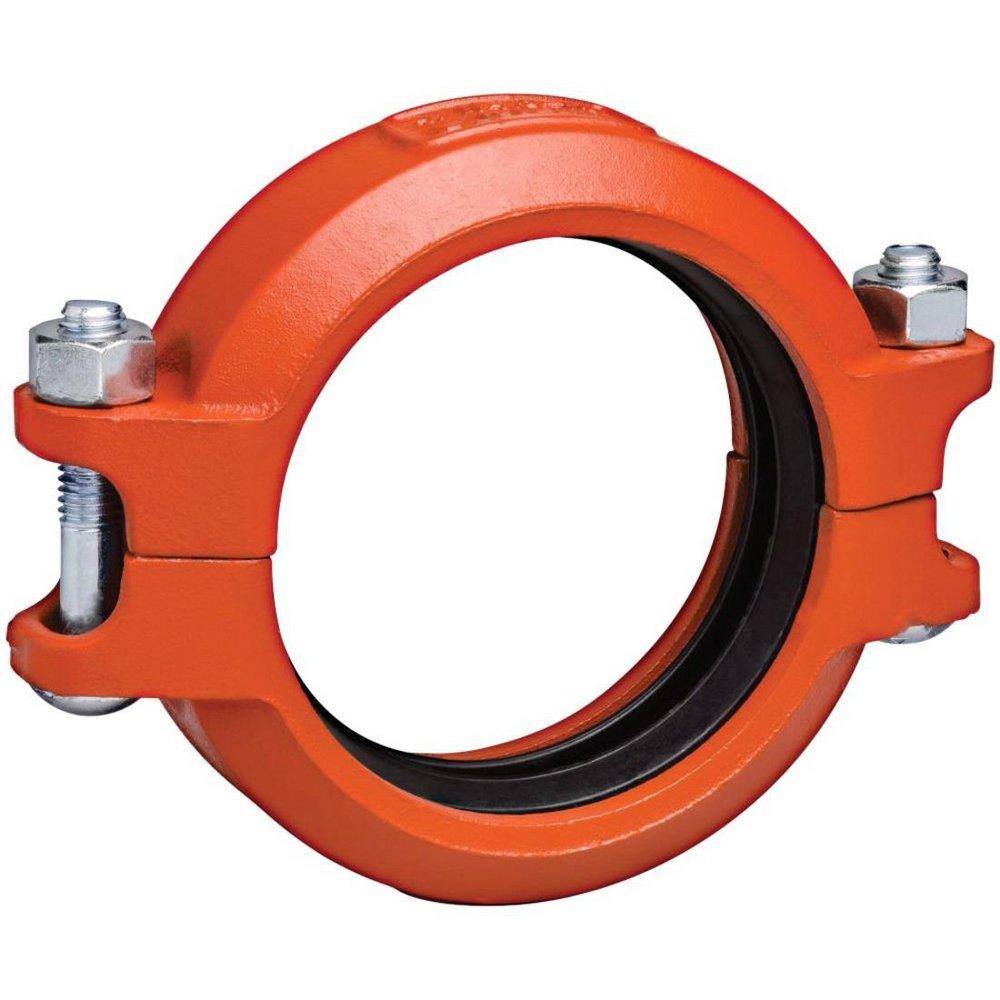

Victaulic L030075PE0 FireLock Style 75 3 in Painted Grooved Coupling

Product Description

The Victaulic L030075PE0 is a FireLock Style 75 painted grooved coupling designed for effective pipe jointing. It fits a connection size of three inches and offers durability for moderate pressure systems.

• Lightweight design for easy installation
• Pressure rated up to five hundred psi
• Compatible with standard roll grooved and cut grooved pipes

Product Highlights

This coupling is made from ductile iron and features an orange enamel finish. It allows for flexible pipe joints accommodating thermal expansion and contraction.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L030075PE0

Technical Specifications

• Connection Size: 3 inches
• Material: Ductile Iron
• Pressure Rating: 500 psi
• Finish: Orange Enamel
• Maximum End Load: 4800 lb
• Temperature Rating: -30 to 230 degrees F
• Length: 7 inches
• Outside Diameter: 3-1/2 inches
• Model: 75
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
• Applications: For joining standard roll grooved and cut grooved pipe, as well as grooved fittings, valves, and accessories
