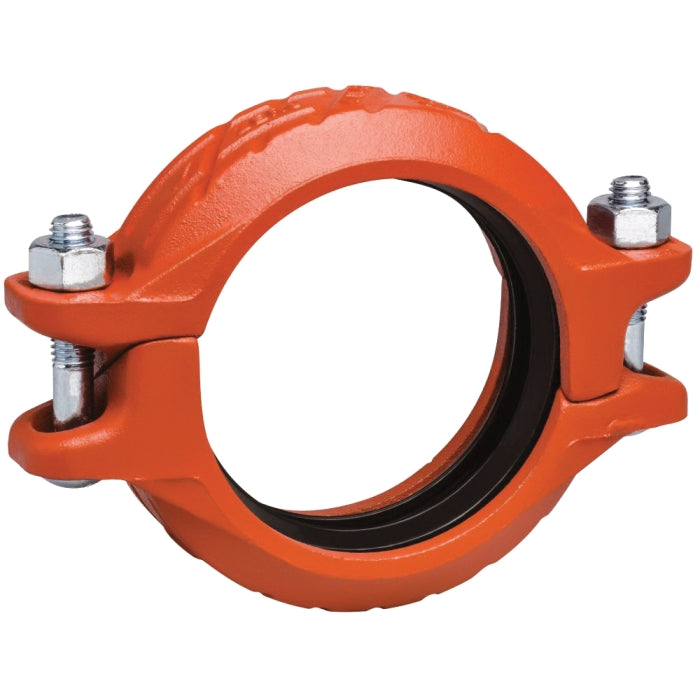

Victaulic L030007PE0 Zero-Flex 7 Series Pipe Rigid Coupling With Gasket 3 in Nominal Grooved End Style

Product Description

The Victaulic L030007PE0 is a rigid coupling designed for use with grooved pipe joints. It features a Grade E EPDM gasket and is built from ductile iron with an orange enamel finish. This coupling accommodates pressures from full vacuum up to seven hundred fifty psi, making it suitable for various plumbing applications.

• Supports pressure from full vacuum to seven hundred fifty psi.
• Compatible with OGS roll grooved pipe and cut grooved pipe.
• Constructed from ductile iron with Grade E EPDM gasket.

Product Highlights

This coupling meets ASME and NFPA standards, ensuring safety and reliability in plumbing systems.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: L030007PE0

Technical Specifications

• Connection Size: 3 in
• Material: Ductile Iron
• Maximum End Load: 7215 lb
• Pressure Rating: 750 psi
• Temperature Rating: -30 to 230 deg F
• Length: 6.81 in
• Outside Diameter: 3-1/2 in
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
• Applications: For use with OGS roll grooved pipe, cut grooved pipe, valves, fittings, and accessories
