Victaulic L030005PE0 FireLock 005 Orange Enamel Ductile Iron Grooved Rigid Coupling 3 in

Product Description

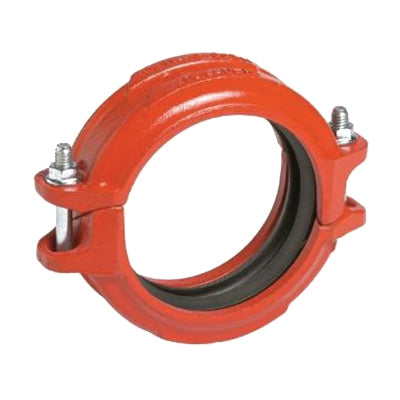

The Victaulic L030005PE0 is a FireLock 005 Orange Enamel Ductile Iron Grooved Rigid Coupling designed for fire protection systems. This coupling features a unique angle-pad design that allows the housing to offset while securely clamping the grooves. This feature provides rigidity for valve connections, fire mains, and long straight runs in compliance with NFPA 13 sprinkler systems. The angle-pad design simplifies the assembly process, as removing one nut or bolt allows the housing to swing over the gasket. This reduces the number of components to handle during installation, streamlining the process.

• Unique angle pad design enhances rigidity and stability
• Supports and hangs similarly to welded or threaded systems
• Constructed with heat-treated plated carbon steel bolts and nuts

Product Highlights

Ideal for fire protection applications, the Style 005 FireLock coupling incorporates a Vic-Plus gasket system and complies with all necessary standards.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• MPN: L030005PE0
• Connection Size: 3 inches
• Gasket Type: Grade E EPDM (Type-A) Vic-Plus
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Bolts: Two bolts measuring 3/8 x 2-1/2 inches
• Applications: For use with fire protection services only
