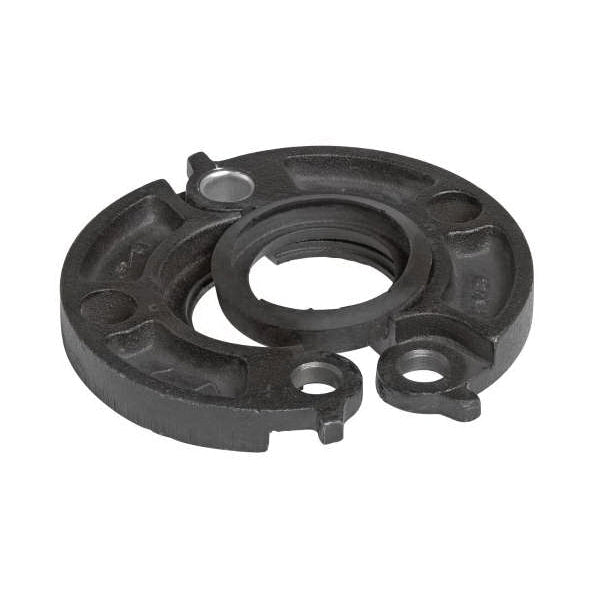

Victaulic L024744PE0 FireLock 744 Black Enamel Ductile Iron Flange Adapter with Grade E EPDM Type-A Vic-Plus Gasket 2-1/2 in

Product Description

The Victaulic L024744PE0 is a FireLock 744 flange adapter designed for grooved pipe systems. It is suitable for integrating flanged components with ANSI Class 125 or Class 150 bolt hole patterns. This flange adapter simplifies the assembly of fire protection systems and is built to withstand maximum end loads of up to 1135 pounds.

• Compatible with ANSI Class 125 and 150 bolt patterns
• Features a Grade E EPDM Vic-Plus gasket for improved assembly
• UL listed and FM approved for fire protection applications

Product Highlights

This flange adapter is optimized for use with grooved systems and includes integrated end tabs for better handling. Its design ensures a secure connection without unnecessary lubrication.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 744
• Connection Size: 2-1/2 in
• Connection Type: Grooved
• Material: Ductile Iron
• Finish: Black Enamel
• Pressure Rating: 175 psi
• Maximum End Load: 1135 lb
• Outside Diameter: 7.88 in
• Thickness: 0.88 in
• Bolt Circle Diameter: 5-1/2 in
• Bolt Size: 5/8 x 3 in
• Number of Bolts: 4
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: UL and ULC listed, FM approved
• Applications: For use with fire protection systems
