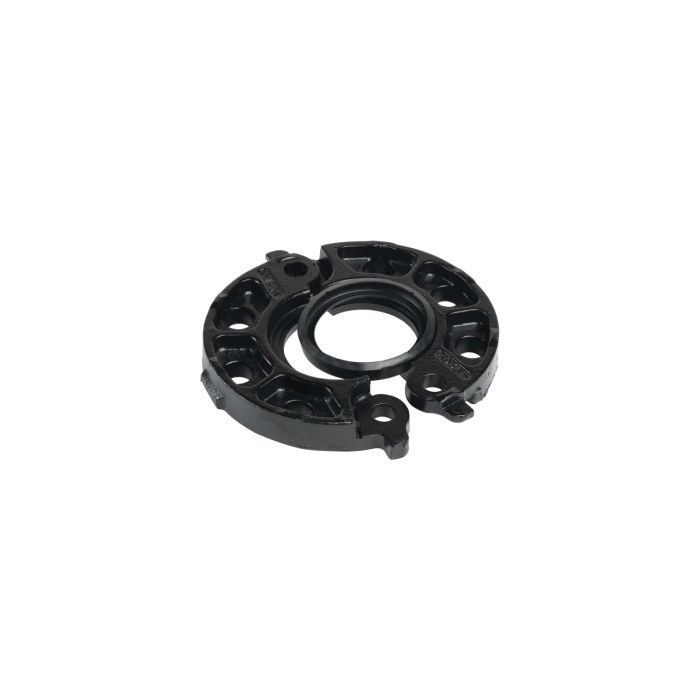

Victaulic L024743PE0 Style 743 2-1/2 in Grooved x Flanged Painted Ductile Iron Adapter with EPDM Gasket

Product Description

The Victaulic L024743PE0 Style 743 is a flange adapter designed for use in plumbing systems. This adapter facilitates the direct connection of ANSI class 300 flanged components to a grooved system. It features a painted ductile iron construction for durability and includes an EPDM gasket for effective sealing.

• Permits direct connection of ANSI class 300 flanged components into a grooved system
• Compatible with raised face and flat face flanges
• Handles standard wall carbon steel pipe roll or cut grooved according to Victaulic specifications

Product Highlights

Suitable for various plumbing applications, this product offers reliable performance and meets industry standards.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L024743PE0

Technical Specifications

• Nominal Size: 2-1/2 inches
• Flange Outside Diameter: 7-1/2 inches
• Nominal Bore Size: 2-7/8 inches
• Flange Thickness: 1.06 inches
• Bolt Circle Diameter: 5.88 inches
• Number Of Bolts: 8
• Bolt Hole Diameter: 3/4 inches
• Material: Ductile Iron
• Maximum Pressure: 720 PSI
• End Load: 4670 lbs maximum
