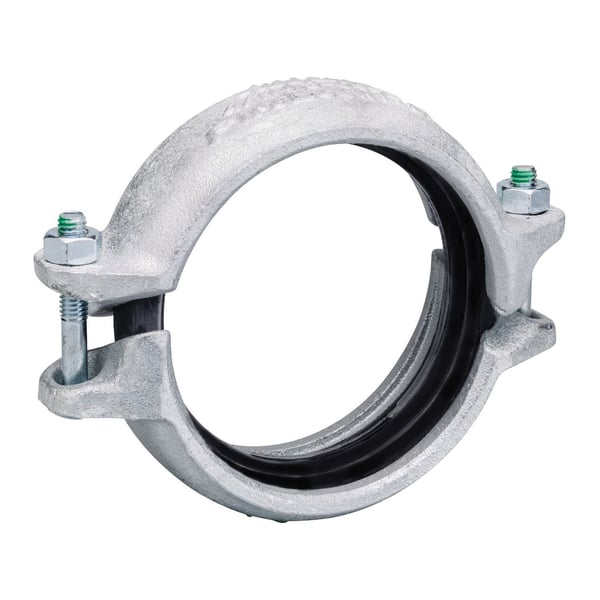

Victaulic L02409NGE0 Grooved Rigid Coupling 2-1/2 in Replacement MPN

Product Description

The Victaulic L02409NGE0 is a grooved rigid coupling designed for fire protection systems. This coupling joins carbon steel pipes with grooved ends effectively and restricts axial or angular movement. It features a pre-lubricated gasket made from grade E EPDM, ensuring a reliable seal.

• Joins carbon steel pipe with grooved ends.
• Provides a rigid pipe joint designed to restrict axial or angular movement.
• Includes gasket - grade E EPDM (type-A) Vic-Plus pre-lubricated gasket.

Product Highlights

This coupling meets stringent mechanical property requirements and is suitable for various industrial applications including fire protection.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: L02409NGE0

Technical Specifications

• Connection Size: 2-1/2 inches
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Included Components: (2) 3/8 x 2-1/2 inches bolts
• Material: Hot dipped galvanized ductile iron
• Finish: Zinc electro-plated per ASTM B633
• Gasket Type: Vic-Plus pre-lubricated
