Victaulic L024089GE0 Style 89 Coupling 2-1/2 in

Product Description

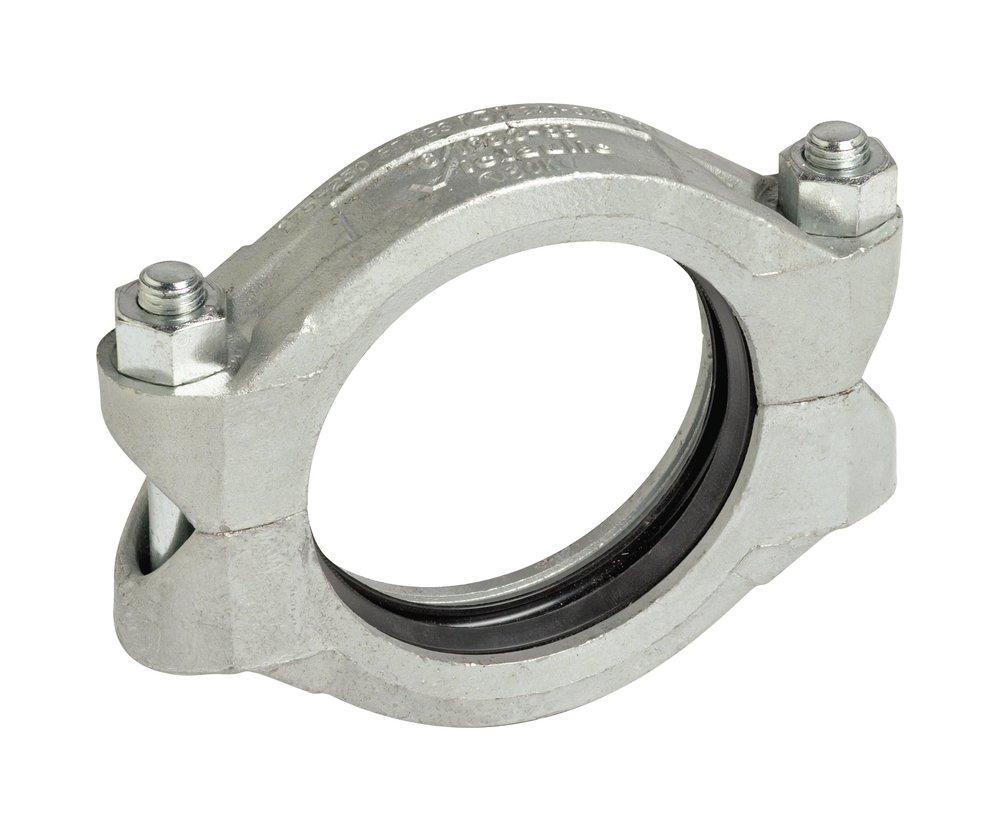

The VICTAULIC L024089GE0 Style 89 Coupling features a heavy-duty, galvanized ductile iron housing designed for use specifically with stainless steel systems. It has a wider housing key than a standard coupling that provides an essentially rigid joint. It greatly reduces linear or angular movement and is useful for valve connections where rigidity is required.

• Style 89 couplings are suitable for use with stainless steel piping
• Grade E EPDM gasket
• Working Pressure and End Load are total, from all internal and external loads, based on stainless steel pipe, roll grooved with Victaulic rolls in accordance with Victaulic specifications

Product Highlights

The coupling is designed for stainless steel systems, provides a rigid joint, and is pressure rated up to 1200 PSI.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: L024089GE0
• Country of Origin: Import

Technical Specifications

• Brand: VICTAULIC
• MPN: L024089GE0
• End Style: Grooved
• Finish: Hot Dipped Galvanized
• Fitting/Connector Type: Coupling
• Gasket Type: E
• Length: 7.13 In
• Material: Ductile Iron
• Nominal Size: 2-1/2 In
• Pressure Rating: 1200 psi
• Series: 89 Series
• ANSI: ANSI 61
• ASTM: ASTM A-395 Grade 65-45-15, ASTM A-536 Grade 65-45-12
• Application: Stainless Steel Pipe
• Coating: Hot Dipped Galvanized
• Collection: Style 89
• End Connection 1: Grooved
• End Connection 2: Grooved
• End Connections: Grooved
• FM Approved: No
• Fitting Size 1: 2-1/2
• Fitting Size 2: 2-1/2
• Fitting Sizes: 2-1/2 in
• Fitting Type: Coupling
• NSF: NSF 61
• NSF Certified: Yes
• Pressure - High: 1200
• UL Listed: No
• Item Name: Rigid Coupling With Grade E Gasket
• Series/Model: Style 89
• Connection Type: Grooved
• Material Standard: ASTM A536 Grade 65-45-12
• Finish/Color: Hot-Dipped Galvanized
• Outside Diameter: 2-7/8 IN
• Maximum Pressure: 1200 PSI
• Other Physical Dimension: 2 IN Width, 0.14 IN Allowable Pipe End Separation, (2) 5/8 X 3-1/2 IN Bolt/Nut, 4.13 IN Body Outside Diameter
• Domestic/Import: Import
• Additional Specifications: Nut Torque Rating: 80 - 120 NM
• Weight: 4.000 LB
