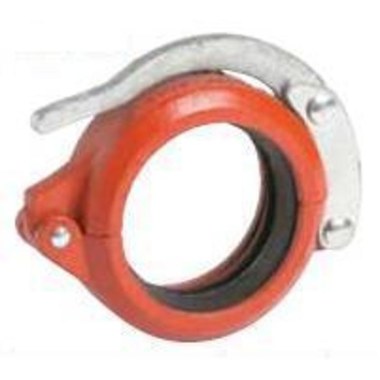

Victaulic L024078PEA Snap-Joint 78 Orange Enamel Ductile Iron Grooved Coupling with Grade E EPDM Gasket 2-1/2 in

Product Description

The Victaulic L024078PEA is a snap-joint grooved coupling made of ductile iron. It features a Grade E EPDM gasket and is designed for quick disconnect service. This coupling helps streamline installation and maintenance in various piping systems.

• Designed for quick disconnect service
• Grade E EPDM gasket included
• Compatible with various piping applications

Product Highlights

This coupling is ideal for applications needing easy maintenance access.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 2-1/2 in
• Finish: Orange Enamel
• Item Name: Grooved Coupling with Grade E EPDM Gasket
• Length: 5.88 in
• Material: Ductile Iron
• Maximum End Load: 1950 lb
• Model: 78
• Outside Diameter: 2-7/8 in
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 deg F
• Sub Brand: Snap-Joint
• Material Specifications: ASTM A395, Grade 65-45-15, and ASTM A536, Grade 65-45-12
