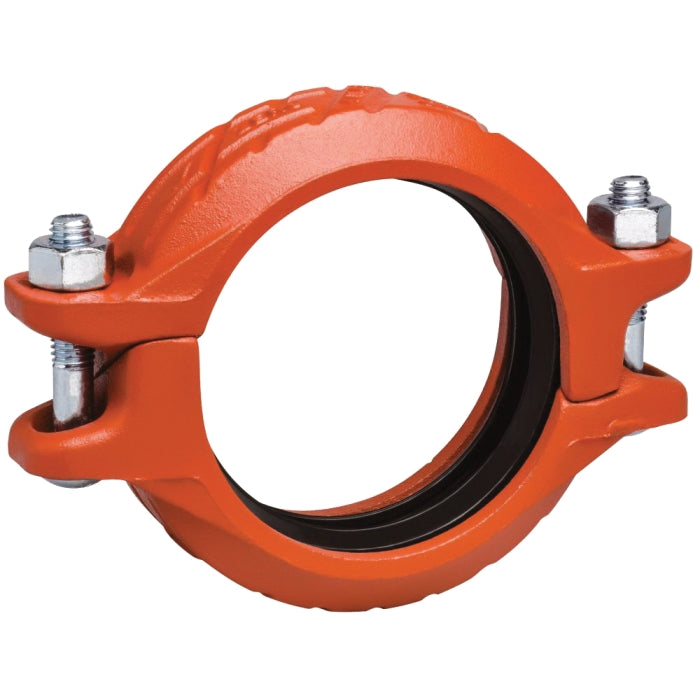

Victaulic L024007PT0 Zero-Flex 07 Orange Enamel Ductile Iron Grooved Rigid Coupling with Grade T Nitrile Gasket 2-1/2 in

Product Description

The Victaulic L024007PT0 is a ductile iron grooved rigid coupling designed for reliable connections. This coupling accommodates pressures from full vacuum to seven hundred fifty psi. It is ideal for use with grooved pipe joints, valves, and fittings.

• Accommodates pressures ranging from full vacuum to seven hundred fifty psi
• Supports ASME B31.1 and NFPA 13 requirements
• Includes grade E EPDM gasket for effective sealing

Product Highlights

This grooved coupling features an angled bolt pad for added rigidity and a durable orange enamel finish.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: Zero-Flex

Technical Specifications

• Connection Size: 2-1/2 in
• Material: Ductile Iron
• Material Specifications: ASTM A536, Grade 65-45-12
• Finish: Orange Enamel
• Length: 6.38 in
• Maximum End Load: 4875 lb
• Pressure Rating: 750 psi
• Outside Diameter: 2-7/8 in
• Temperature Rating: -20 to 180 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
• Applications: For use with OGS roll grooved pipe and cut grooved pipe, valves, fittings, and accessories
