Product Description

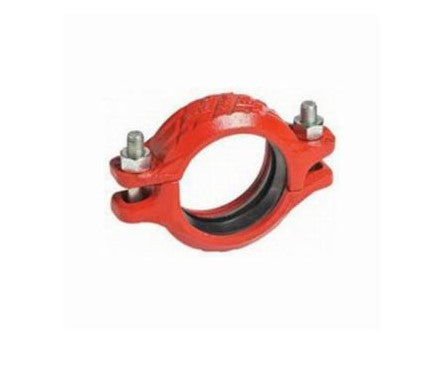

The Victaulic L024007PE0 is a zero-flex grooved rigid coupling made of ductile iron. This coupling features a Grade E EPDM gasket and is designed for pipes with a connection size of two and one-half inches.
- Angled bolt pad offers structural strength.
- Pressure range accommodates full vacuum up to seven hundred fifty psi.
- Compatible with OGS roll grooved and cut grooved pipe systems.
Product Highlights
This coupling is suitable for various piping systems and is built to withstand high pressures while maintaining a secure connection.
Product Information
Standard Information
-
Brand: Victaulic
-
Manufacturer: Victaulic
Technical Specifications
-
Model: 07
-
Material: Ductile Iron
-
Finish: Orange Enamel
-
Connection Size: Two and one-half inches
-
Pressure Rating: Seven hundred fifty psi
-
Maximum End Load: Four thousand eight hundred seventy-five lb
-
Outside Diameter: Two and seven-eighths inches
-
Temperature Rating: Negative thirty to two hundred thirty degrees Fahrenheit
-
Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
-
Applications: Designed for use with grooved pipes, valves, and accessories.
