Victaulic L024007GE0 Ductile Iron Grooved Rigid Coupling 2-1/2 in

Product Description

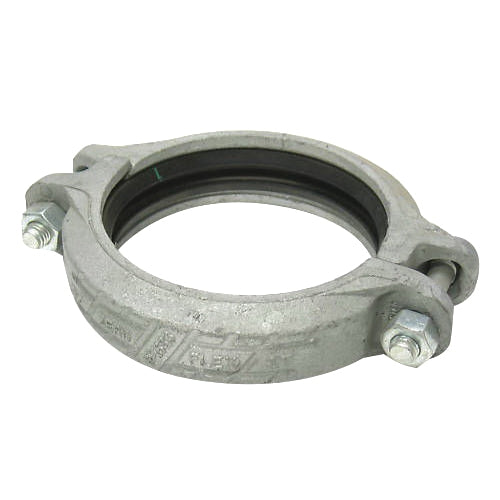

The Victaulic L024007GE0 is a ductile iron grooved rigid coupling. It features a hot dipped galvanized finish and utilizes a grade E EPDM gasket. This coupling is designed for a connection size of two and a half inches.

• Angled bolt pad provides rigidity
• Handles pressures up to seven hundred fifty psi
• Compatible with ASME B31.1 and NFPA 13 standards

Product Highlights

This coupling is ideal for joining OGS roll grooved pipe and cut grooved pipe, valves, fittings, and accessories. It is suitable for various applications in plumbing and HVAC systems.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 2-1/2 in
• Finish: Hot Dipped Galvanized
• Item Name: Grooved Rigid Coupling with Grade E EPDM Gasket
• Length: 6.38 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Maximum End Load: 4875 lb
• Model: 07
• Outside Diameter: 2-7/8 in
• Pressure Rating: 750 psi
• Sub Brand: Zero-Flex
• Temperature Rating: -30 to 230 deg F
