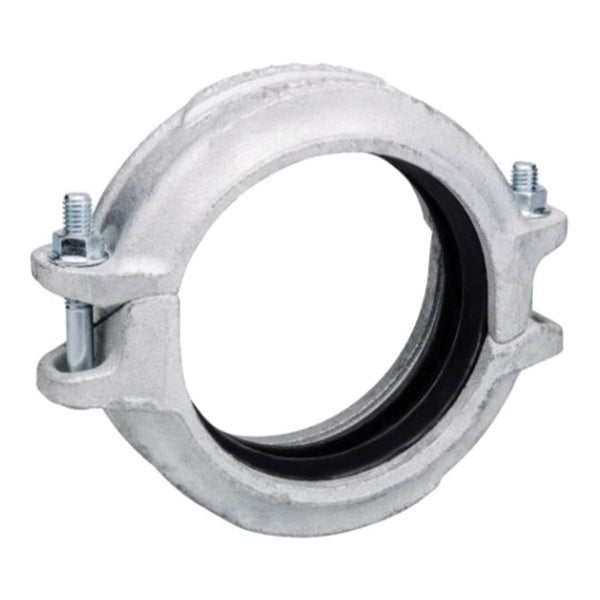

Victaulic L024005GE0 FireLock 005 Hot Dipped Galvanized Ductile Iron Grooved Rigid Coupling 2-1/2 in

Product Description

The Victaulic L024005GE0 is a FireLock 005 Hot Dipped Galvanized Ductile Iron Grooved Rigid Coupling designed for fire protection systems. This unit features a unique angle-pad design that provides rigidity while clamping the grooves. The design supports the requirements of NFPA 13 sprinkler systems.

• Patented angle-pad design for enhanced rigidity
• Compatible with fire protection applications
• Quick assembly with fewer components

Product Highlights

This coupling is engineered specifically for fire protection services, ensuring secure connections for valves and fire mains.

Product Information

Standard Information

• Brand: Victaulic
• UPC: 688304300561

Technical Specifications

• MPN: L024005GE0
• Connection Size: 2-1/2 inches
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Gasket: Grade E EPDM (Type-A) Vic-Plus gasket system
• Components: Two 3/8 x 2-1/2 inches bolts
• Applications: Designed for fire protection services only
