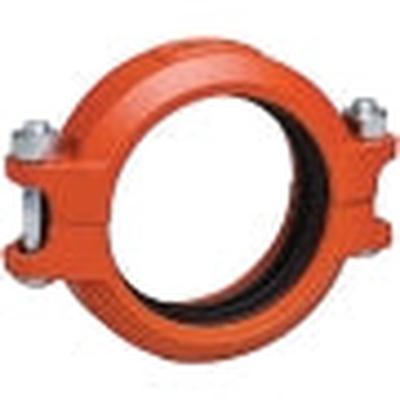

Victaulic L024004PE0 Grooved Flexible Coupling with Grade E EPDM Gasket 2-1/2 in

Product Description

The Victaulic L024004PE0 is a grooved flexible coupling designed for moderate pressures. This coupling is made from ductile iron with an orange enamel finish and includes a Grade E EPDM gasket. It is useful for applications requiring a flexible joint, accommodating both expansion and contraction.

• Lightweight design
• Pressure rating of 500 psi
• Designed for standard and cut grooved pipes

Product Highlights

This coupling provides flexibility while maintaining strength. It supports a maximum end load of three thousand two hundred forty-five pounds, making it suitable for a variety of fire protection applications.

Product Information

Standard Information

• Manufacturer: Victaulic
• Brand: Victaulic

Technical Specifications

• Connection Size: 2-1/2 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Length: 5.68 in
• Outside Diameter: 2-7/8 in
• Pressure Rating: 500 psi
• Maximum End Load: 3245 lb
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
• Applications: For use with standard roll grooved and cut grooved pipe, as well as grooved fittings, valves, and accessories
