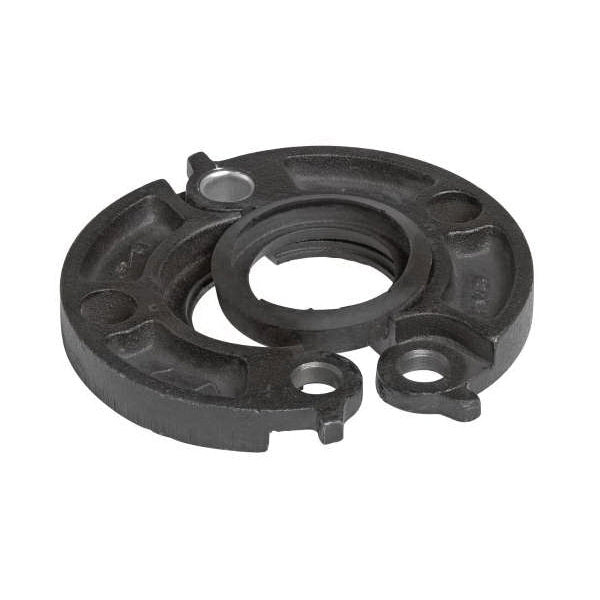

Victaulic L020744PE0 FireLock 744 Black Enamel Ductile Iron Flange Adapter with Grade E EPDM Type-A Vic-Plus Gasket 2 in

Product Description

The Victaulic L020744PE0 is a FireLock flange adapter designed to fit with ANSI Class 125 or Class 150 bolt hole patterns. This product is made from ductile iron, providing durability and strength for reliable use in fire protection systems.

• Compatible with sizes ranging from two inches to eight inches.
• Hinged design allows for easy handling and assembly.
• Does not require lubrication with the included Vic-Plus gaskets.

Product Highlights

This flange adapter is ideal for fire protection installations and features a patented design that reduces assembly time and eliminates mess.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 2 in
• Material: Ductile Iron
• Finish: Black Enamel
• Pressure Rating: 175 psi
• Maximum End Load: 775 lb
• Model: 744
• Bolt Circle Diameter: 4-3/4 in
• Outside Diameter: 6-3/4 in
