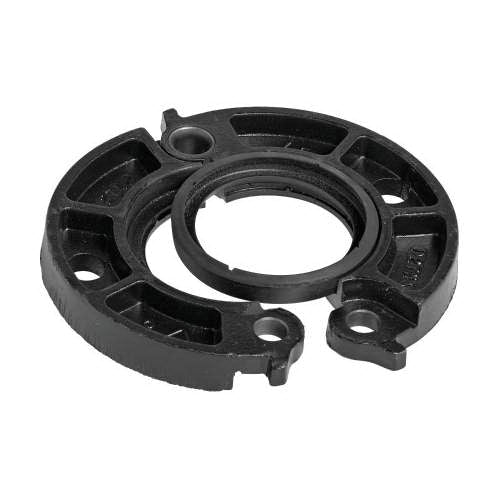

Victaulic L020741PE0 Vic-Flange 741 Adapter 2 in Flanged x Groove End

Product Description

The Victaulic L020741PE0 Vic-Flange 741 Adapter is a black enamel ductile iron flange adapter that includes a Grade E EPDM gasket. This adapter, which features a 2-inch connection size, is designed to efficiently transition from flanged to grooved piping systems.

• 2-inch connection size
• Grade E EPDM gasket
• Black enamel finish

Product Highlights

This flange adapter is listed and certified by UL, ULC, FM, VDS, and LPCB, ensuring reliable performance. The product is applicable for use in various piping systems that require a transition from flanged to grooved connections.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L020741PE0

Technical Specifications

• Actual Outside Diameter: 2-3/8 in
• Bolt Circle Diameter: 4-3/4 in
• Bolt Size: 5/8 x 2-3/4 in
• Connection Size: 2 in
• Connection Type: Grooved
• Finish: Black Enamel
• Item Name: Flange Adapter with Grade E EPDM Gasket
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Maximum End Load: 1330 lb
• Model: 741
• Number of Bolts: 4
• Outside Diameter: 6-3/4 in
• Pressure Rating: 300 psi
• Sub Brand: Vic-Flange
• Temperature Rating: -30 to 230 deg F
• Thickness: 3/4 in
• Applications: Designed to transition from flanged to grooved piping systems
• Standards/Certifications: UL and ULC listed, FM, VDS, LPCB approved
