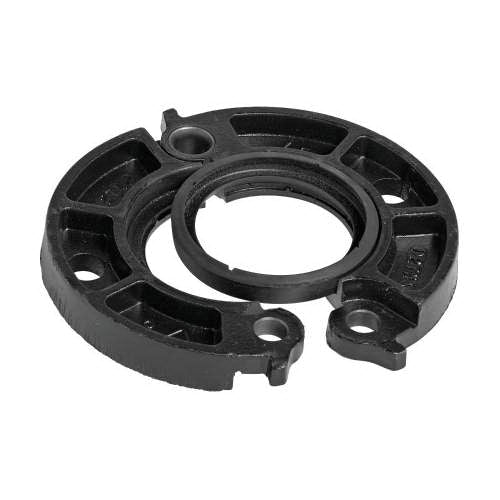

Victaulic L020741GE0 Vic-Flange 741 Hot Dipped Galvanized Ductile Iron Flange Adapter with Grade E EPDM Gasket 2 in

Product Description

The Victaulic L020741GE0 is a strong flange adapter that connects flanged to grooved piping systems efficiently. Made from ductile iron, this flange features a hot dipped galvanized finish for durability. The product meets ANSI class 125 and 150 standards.

• Meets UL and ULC certifications.
• Designed for use in flanged to grooved transitions.
• Pressure rating of three hundred psi.

Product Highlights

This flange adapter is suitable for various piping applications and provides reliability in demanding environments.

Product Information

Standard Information

• Brand: Victaulic
• UPC: 68830447290

Technical Specifications

• Model: 741
• Material: Ductile Iron
• Connection Size: 2 in
• Connection Type: Grooved
• Thickness: 3/4 in
• Outside Diameter: 6-3/4 in
• Actual Outside Diameter: 2-3/8 in
• Bolt Circle Diameter: 4-3/4 in
• Bolt Size: 5/8 x 2-3/4 in
• Number of Bolts: 4
• Maximum End Load: 1330 lb
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 deg F
• Material Specifications: ASTM A536, Grade 65-45-12
