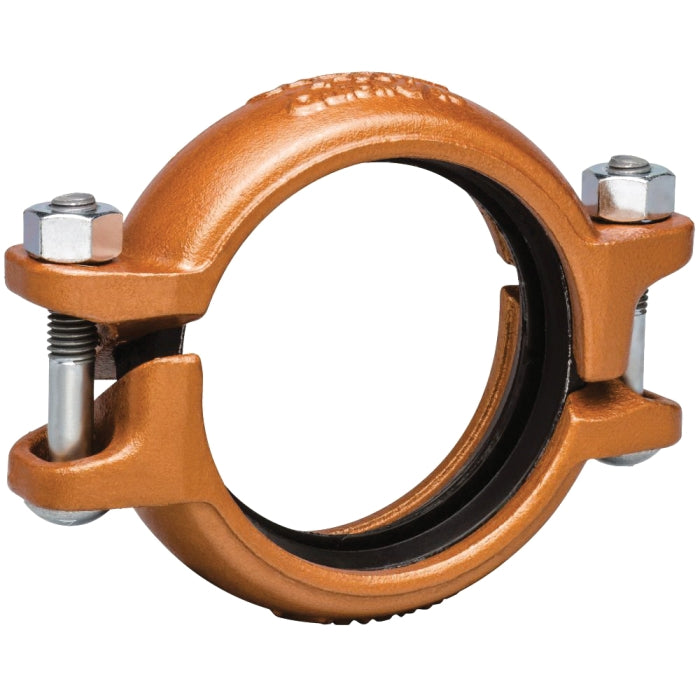

Victaulic L020607PE0 QuickVic 607 Rigid Coupling 2 in Grooved Copper Tubing

Product Description

The Victaulic L020607PE0 QuickVic 607 is a rigid coupling designed for securing grooved rigid copper tubing measuring 2 inches. This durable coupling mechanism enhances piping infrastructure integrity and is ideal for applications involving K, L, M, or DWV copper tubing. The coupling features a robust, copper-colored alkyd enamel finish and is built from high-strength ductile iron.

• Streamlined installation requiring no disassembly of bolts, nuts, gaskets, or housings.
• Capable of handling pressures up to 300 psi, suitable for a range of operational demands.
• Conforms to stringent standards, including UL, ULC, and cUPC certifications.

Product Highlights

Equipped with a Grade 'EHP' gasket that ensures a tight seal, the Victaulic L020607PE0 is an installation-ready product that significantly simplifies the pipe joining process. It is engineered for both efficiency and efficacy, supporting typical HVAC and sprinkler system installations.

Product Information

Standard Information

• Size: 2 inches
• Material: Ductile Iron, ASTM A536 Grade 65-45-12

Technical Specifications

• Pressure Rating: Up to 300 psi
• Temperature Range: -30 to 250 degrees Fahrenheit
• Length: 5-1/2 inches
• Outside Diameter: 2-1/8 inches
