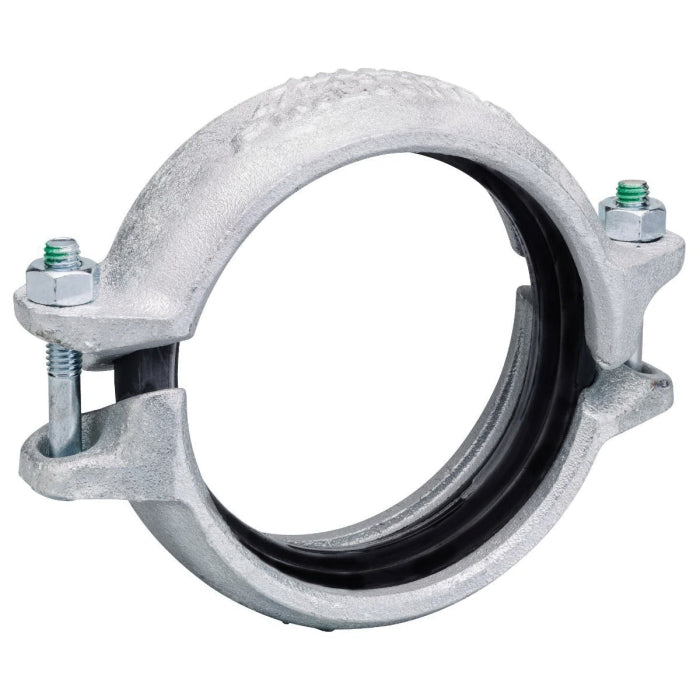

Victaulic L02009NGE0 FireLock Installation-Ready 009N 2 in

Product Description

The Victaulic L02009NGE0 is a FireLock Installation-Ready 009N hot dipped galvanized ductile iron grooved rigid coupling designed for use in fire protection systems. This product provides a reliable connection for joining carbon steel pipes with grooved ends.

• Joins carbon steel pipe with grooved ends
• Offers a rigid pipe joint to restrict axial or angular movement
• Includes grade E EPDM type-A Vic-Plus pre-lubricated gasket

Product Highlights

This coupling is suitable for various fire protection applications where reliable and strong connections are required.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI009NEG.2

Technical Specifications

• Connection Size: 2 in
• Material: Hot dipped galvanized ductile iron
• Gasket Type: Grade E EPDM (type-A) Vic-Plus
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Track Bolts: 3/8 x 2-1/2 in bolts
• Track Bolt Material: Carbon steel, ASTM A449
• Hex Nuts: Carbon steel, ASTM A563 grade B
• Finish: Zinc electro-plated per ASTM B633
