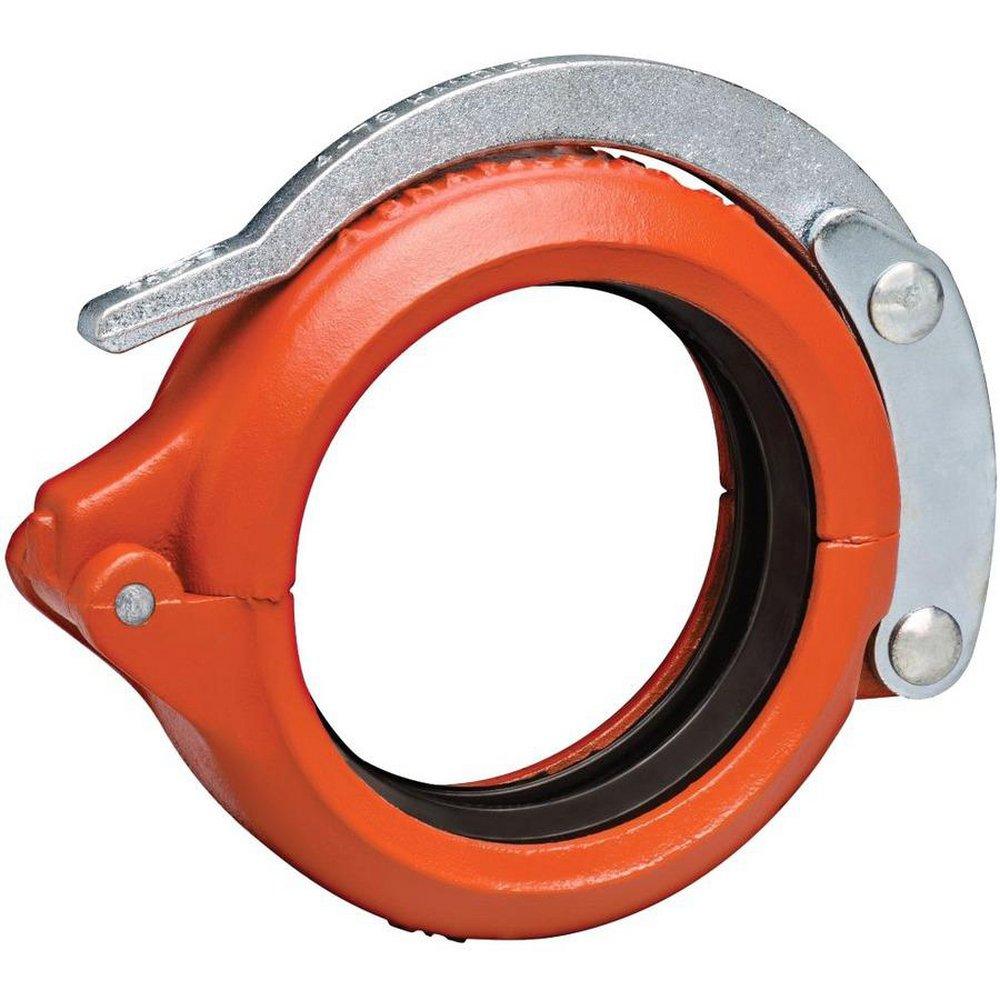

Victaulic L020078PEA Snap-Joint 2 in. Orange Enamel and Painted Grooved Coupling

Product Description

The Victaulic L020078PEA is a Snap-Joint two-inch orange enamel and painted grooved coupling designed for quick disconnect service. This product works well in various piping applications, providing reliable connections in commercial and industrial settings.

• Connection Size: Two inches
• Pressure Rating: Three hundred psi
• Material: Ductile iron with an orange enamel finish

Product Highlights

Designed specifically for ease of assembly and disassembly, this coupling features a locking handle and a unique hinge design for fast installation. Ideal for systems requiring routine maintenance, it reduces downtime and increases productivity.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L020078PEA

Technical Specifications

• Model: 78
• Connection Size: 2 in
• Maximum End Load: 1330 lb
• Outside Diameter: 2-3/8 in
• Temperature Rating: -30 to 230 deg F
• Length: 4-3/4 in
• Material Specifications: ASTM A395, Grade 65-45-15, and ASTM A536, Grade 65-45-12
• Finish: Orange Enamel
• Applications: For use with quick disconnect service
