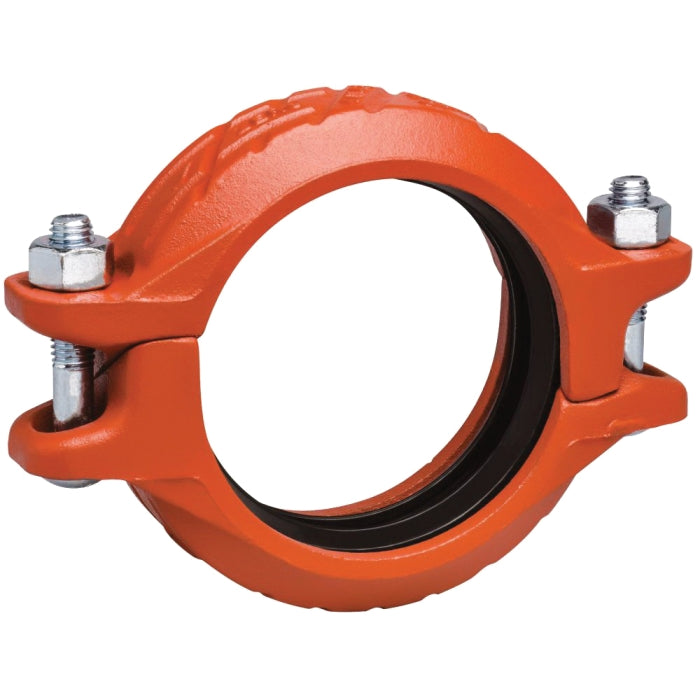

Victaulic L020007PT0 Zero-Flex 07 Orange Enamel Ductile Iron Grooved Rigid Coupling with Grade T Nitrile Gasket 2 in

Product Description

The Victaulic L020007PT0 is a Zero-Flex 07 orange enamel ductile iron grooved rigid coupling designed for mechanical piping systems. This coupling is suitable for joining OGS roll grooved pipe and cut grooved pipe, valves, fittings, and accessories.

• Pressure rating of 750 psi.
• Accommodates pressures from full vacuum up to 750 psi.
• Standards compliance includes ASME B31.1 and NFPA 13.

Product Highlights

This coupling features an angled bolt pad for rigidity and is designed for easy installation and maintenance. Its gasket is made of grade E EPDM, ensuring a reliable seal.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: Zero-Flex

Technical Specifications

• Connection Size: 2 in
• Finish: Orange Enamel
• Item Name: Grooved Rigid Coupling with Grade T Nitrile Gasket
• Length: 5.78 in
• Material: Ductile Iron
• Maximum End Load: 3320 lb
• Model: 07
• Outside Diameter: 2-3/8 in
• Pressure Rating: 750 psi
• Temperature Rating: -20 to 180 deg F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
• Applications: For use with joins OGS roll grooved pipe and cut grooved pipe, valves, fittings, and accessories
