Victaulic L020007PE0 Zero-Flex 07 Orange Enamel Ductile Iron Grooved Rigid Coupling With Grade E Gasket, 2 IN

Product Description

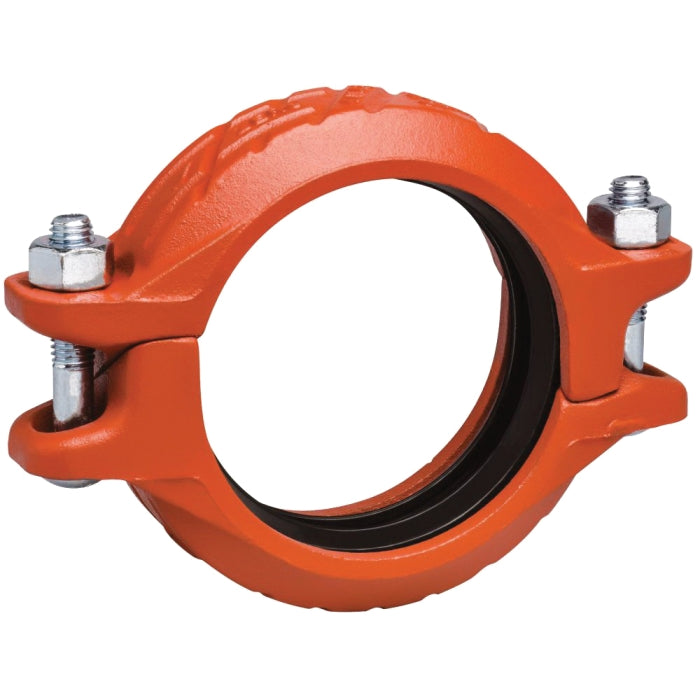

The Victaulic L020007PE0 is a Zero-Flex 07 ductile iron grooved rigid coupling designed for reliable pipe joining. Made from high-grade ductile iron, this coupling is painted with orange enamel for enhanced visibility and protection. It has a nominal size of two inches and accommodates pressures from full vacuum to seven hundred fifty psi.

• Angled bolt pad for added rigidity
• Supports many pressure requirements, from full vacuum up to seven hundred fifty psi
• Meets necessary industry standards for plumbing applications

Product Highlights

This rigid coupling is suitable for joining OGS roll grooved pipe and cut grooved pipe, valves, fittings, and accessories.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: Zero-Flex

Technical Specifications

• Connection Size: 2 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Length: 5.78 in
• Maximum Pressure: 750 psi
• Outside Diameter: 2-3/8 in
• Temperature Rating: -30 to 230 deg F
• Maximum End Load: 3320 lb
