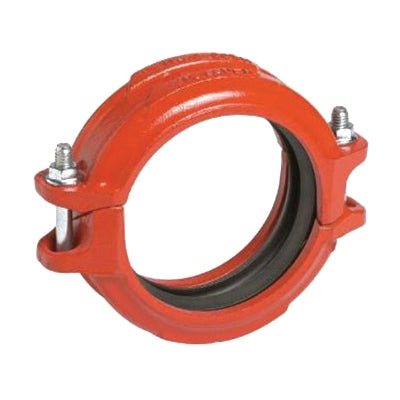

Victaulic L020005PE0 FireLock 005 Orange Enamel Ductile Iron Grooved Rigid Coupling 2 in

Product Description

The Victaulic L020005PE0 is a FireLock 005 grooved rigid coupling made of ductile iron with an orange enamel finish. It features a Grade E EPDM Type-A Vic-Plus gasket and is specifically designed for fire protection applications. The unique angle-pad design allows the coupling to clamp the grooves and also provides rigidity for valve connections and fire mains. This coupling supports installation requirements that comply with NFPA 13 standards.

• Unique angle pad design for enhanced rigidity
• Compatible with NFPA 13 support and hanging requirements
• Heat-treated plated carbon steel bolts and nuts

Product Highlights

This coupling is ideal for fire protection systems and offers easy assembly by permitting the user to remove one bolt and swing the housing over the gasket during installation.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: L020005PE0

Technical Specifications

• Size: 2 inches
• Gasket Type: Grade E EPDM Vic-Plus
• Bolt Size: 3/8 x 2-1/2 inches
• Standards: cULus listed, FM, LPCB, VDS approved
• Application: For use with fire protection services only
