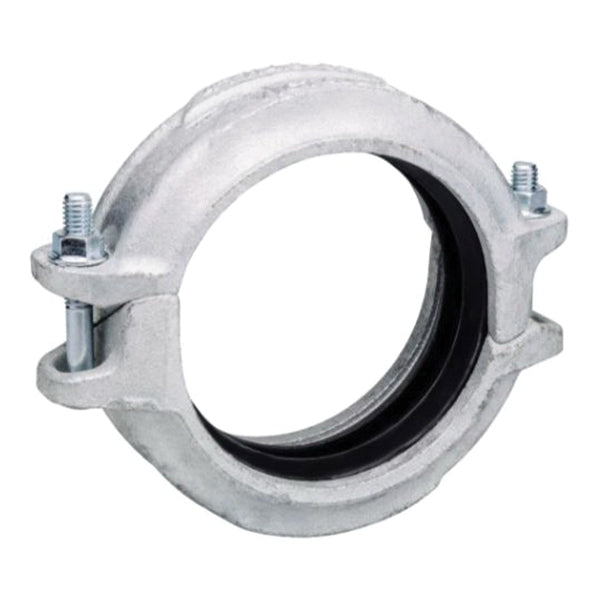

Victaulic L020005GE0 FireLock 005 Hot Dipped Galvanized Ductile Iron Grooved Rigid Coupling with Grade E EPDM Type-A Vic-Plus Gasket 2 in

Product Description

The Victaulic L020005GE0 is a FireLock 005 hot dipped galvanized ductile iron grooved rigid coupling with a Grade E EPDM Type-A Vic-Plus gasket designed for fire protection applications. This coupling features a patented angle-pad design that allows for adjusted clamping and offsets, enhancing rigidity. It is essential for connections in fire mains, valve assemblies, and long straight runs. The design promotes easy installation by letting one nut/bolt be removed, allowing the housing to swing over the gasket, simplifying the assembly process.

• Patented angle-pad design for improved rigidity
• Compatible with NFPA 13 requirements for support and hanging
• Heat-treated plated carbon steel bolts meeting ASTM standards

Product Highlights

The angle-pad design allows for flexibility while maintaining strength, ensuring the coupling performs reliably under fire protection conditions.

Product Information

Standard Information

• Brand: Victaulic
• Usage: Fire protection systems only

Technical Specifications

• Part Number: L020005GE0
• Connection Size: 2 inches
• Gasket Type: Grade E EPDM
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Size of Bolts: (2) 3/8 x 2-1/2 inches
