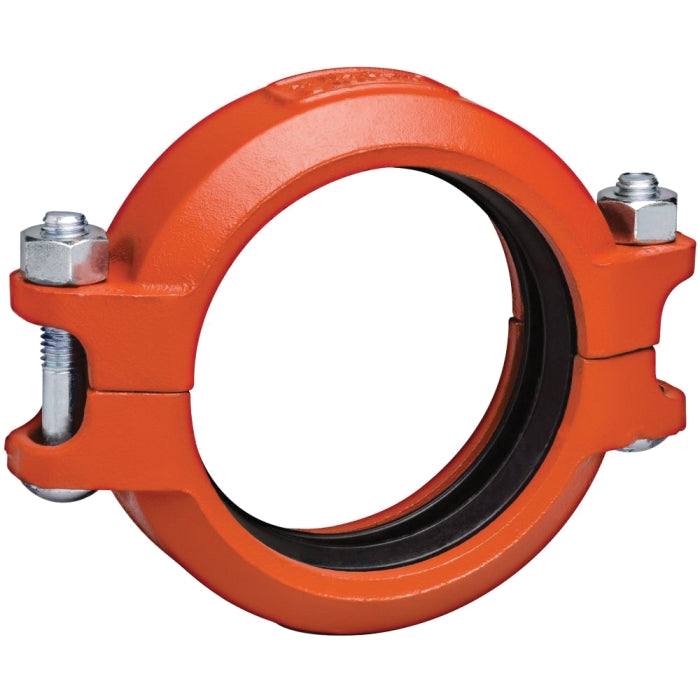

Victaulic L020004PE0 Grooved Flexible Coupling 75/004 2 in

Product Description

Victaulic L020004PE0 is a grooved flexible coupling designed for use in fire protection systems. The coupling can accommodate pressure ranges from full vacuum to five hundred psi. It provides a flexible pipe joint, allowing for expansion, contraction, and deflection. This product is suitable for standard roll grooved and cut grooved pipe, as well as grooved fittings and valves.

• Lightweight coupling for moderate pressures
• Grade E EPDM gasket included
• Compatible with grooved fittings and accessories

Product Highlights

The Victaulic L020004PE0 offers a lightweight design that reduces installation effort while accommodating significant pressures. Its construction includes ductile iron with an orange enamel finish.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI004.2

Technical Specifications

• Model: 75/004
• Connection Size: 2 in
• Length: 5.22 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Maximum End Load: 2215 lb
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
• Applications: For use with joins standard roll grooved and cut grooved pipe, as well as grooved fittings, valves and accessories
