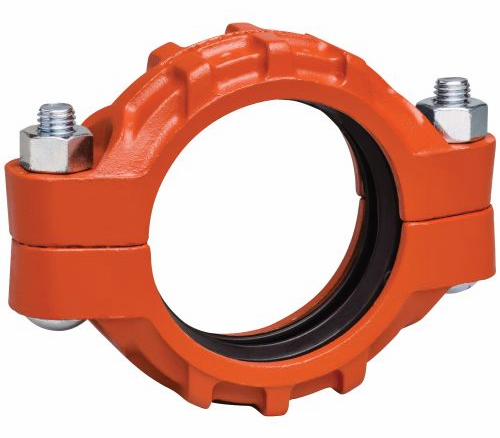

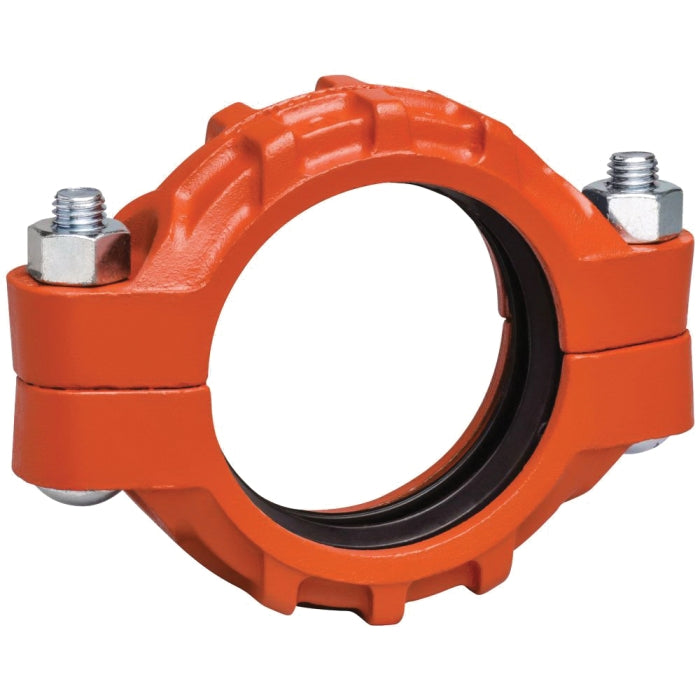

Victaulic L014077PE0 Coupling Flexible 1-1/2 Inch Ductile Iron 77

Product Description

The VICTAULIC L014077PE0 is a flexible coupling with a 1-1/2 inch size, constructed from ductile iron, and part number 77. It is designed for connecting pipes, valves, and fittings. The coupling features a flexible design and an E type gasket. It is suitable for use with standard roll grooved and cut grooved pipe.

• Flexible coupling design
• Ductile iron construction
• E type gasket
• Suitable for connecting pipes, valves, and fittings

Product Highlights

This flexible coupling is made of ductile iron and is ideal for connecting pipes, valves, and fittings with grooved ends.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: L014077PE0
• Country of Origin: United States

Technical Specifications

• Brand: Victaulic
• Product Type: Flexible
• Size: 1-1/2IN
• Material: Ductile Iron
• Part Number: 77
• Finish: Orange Enamel Painted
• Temperature: -30 to 230DEG F
• Standard: ASTM A-536
• Bolt Size: 1/2x2-1/2IN
• Gasket Type: E
• Gasket Color: Green Stripe
• Gasket Material: EPDM
• Application: Connecting Pipes, Valves, and Fittings
• MPN: L014077PE0
• Series/Model: Style 77
• Nominal Size: 1-1/2 IN
• Connection Type: Grooved
• Material Standard: ASTM A536 Grade 65-45-12
• Outside Diameter: 1.9 IN
• Length: 5.38 IN
• Maximum Pressure: 1000 PSI
• Industry Standards: UL And CUL Listed, FM And CTP Approved
• Other Physical Dimension: 1.88 IN Width, (2) 1/2 X 2-1/2 IN Bolt/Nut, 0 - 0.06 IN Allowable Pipe End Separation, 3.13 IN Body Outside Diameter
• Domestic/Import: Import
• End Load: 2835 LB Maximum
• Connection Size: 1-1/2 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Model: 77
• Pressure Rating: 1000 psi
• Temperature Rating: -30 to 230 deg F
• End Style: Grooved
• Fitting/Connector Type: Coupling
• Series: 77 Series
• Connection Size 1: 1-1/2 in
• Connection Size 2: 1-1/2 in
• Connection Type 1: Grooved
• Connection Type 2: Grooved
• For Use With: Standard Roll Grooved, Cut Grooved Pipes, Grooved Fittings, Valves and Accessories
• Material Construction: Iron
