Victaulic L014007PT0 Zero-Flex™ Style 07 1-1/2 in. Orange Enamel Grooved Coupling

Product Description

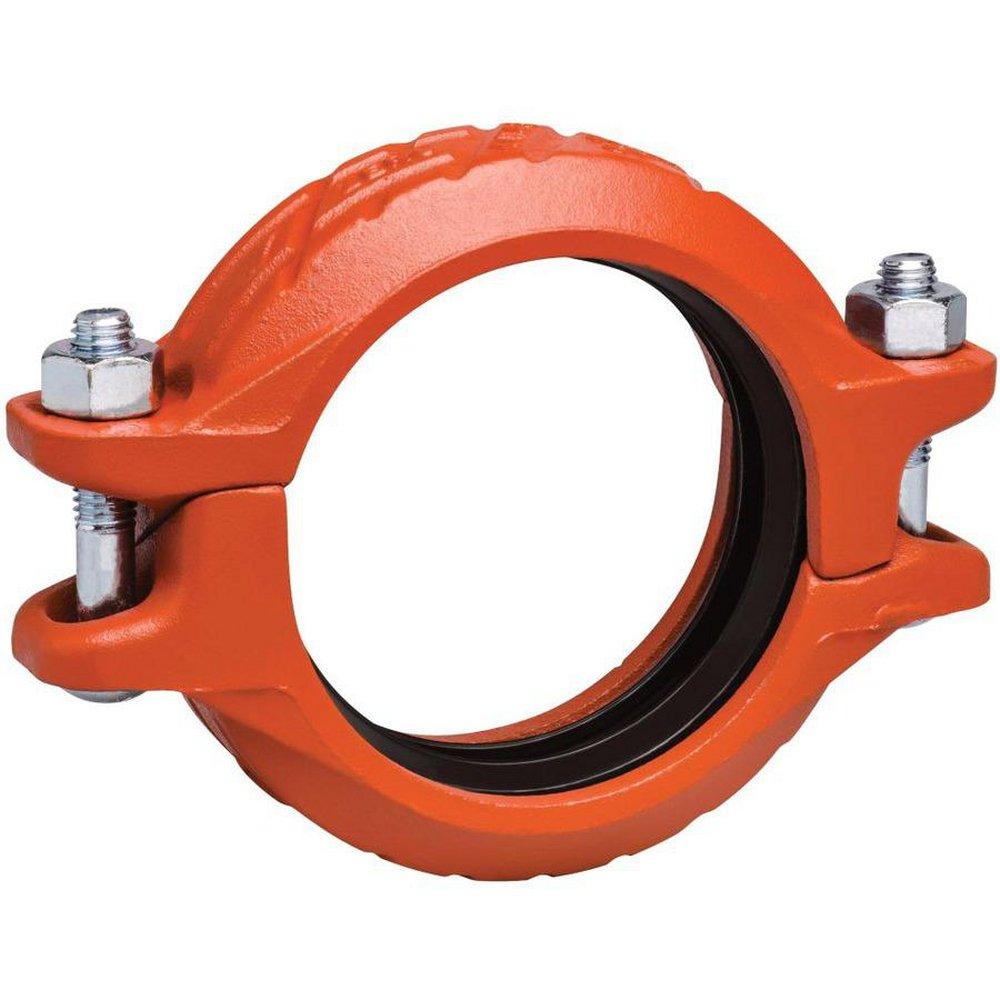

The Victaulic L014007PT0 is a Zero-Flex™ Style 07 grooved coupling designed for pipe joining applications. This coupling is constructed from ductile iron and finished with orange enamel. It is suitable for use with both roll grooved and cut grooved pipes.

• Accommodates pressure ratings up to seven hundred fifty psi.
• Angled bolt pad structure offers enhanced rigidity.
• Compatible with various fittings and valves in pressure systems.

Product Highlights

Ideal for applications where pipe integrity is crucial, this coupling provides reliable connections.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 1-1/2 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Length: 5.81 in
• Model: 07
• Pressure Rating: 750 psi
• Outside Diameter: 1.9 in
• Temperature Rating: -20 to 180 deg F
• Maximum End Load: 2130 lb
• Material Specifications: ASTM A536, Grade 65-45-12
• Sub Brand: Zero-Flex
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
• Applications: Designed for use with joins OGS roll grooved pipe and cut grooved pipe, valves, fittings, and accessories.
